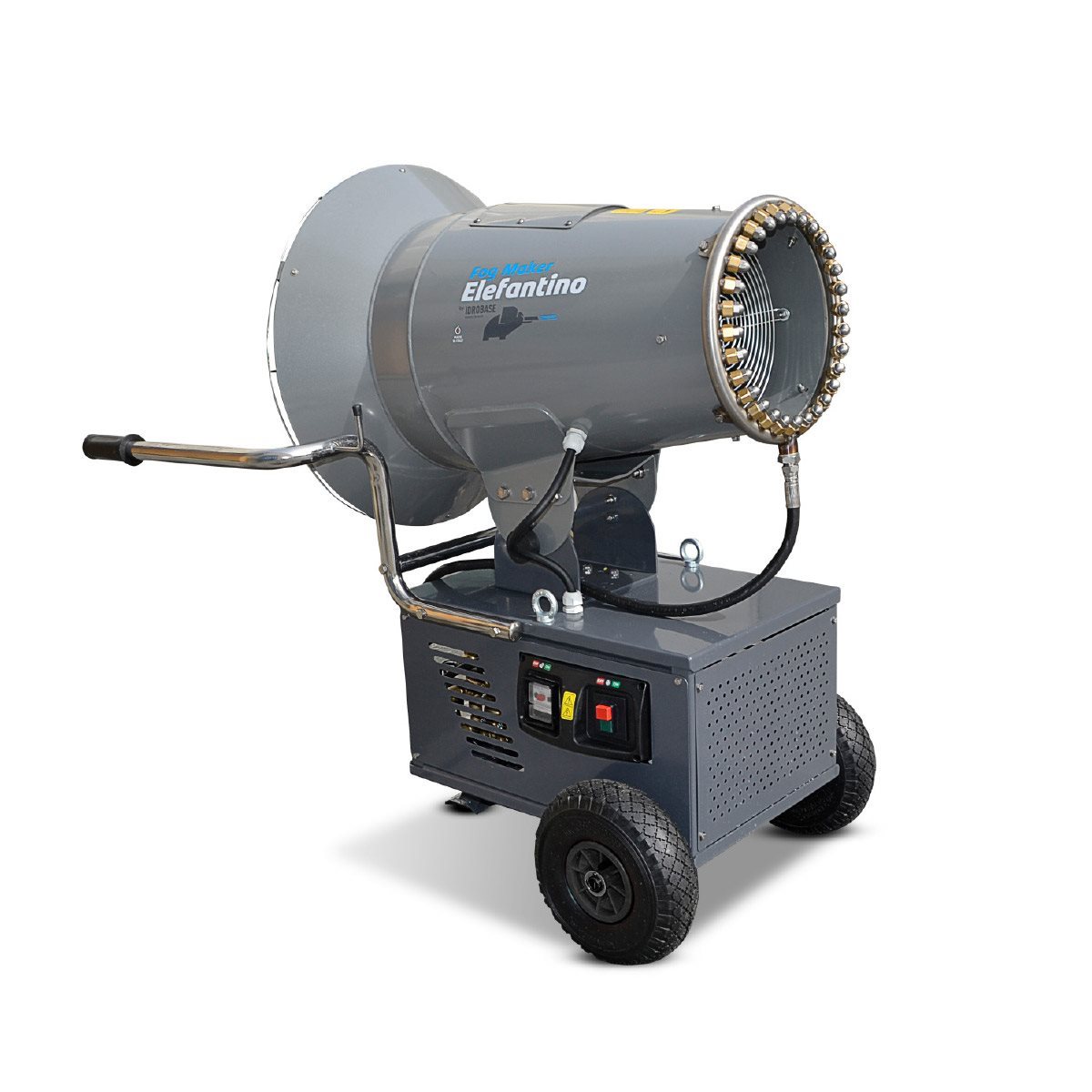

Fog Maker Elefantino

Pressure 80bar Fan jet 21m 30 nozzles

Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 21 metres.

• Elefantino: ideal for suppression of fine dust (PM10), in small to medium sized areas such as in renovation of buildings and when handling dusty materials

highlights

Technical data

CODE	Model	Pressure	Flow rate	Drop size	Power (3x400V-50Hz)	Peso	Preventive maintenance 750 hrs (standard)	Preventive maintenance 1500 hrs (optional)

ZX.8401	Elefantino 6,5	80bar	6,5l/min	12mcr	3,7Kw	97kg	ZX.75IBG10	ZX.150IBG10

ZX.8402	Elefantino 11	70bar	11l/min	18mcr	3,7Kw	97kg	ZX.75IBG02	ZX.150IBG02

ZX.8403	Elefantino 15	80bar	15l/min	24mcr	4,4Kw	100kg	ZX.75IBG03	ZX.150IBG03

ZX.8404	Elefantino 21	70bar	21l/min	24mcr	5,2Kw	123kg	ZX.75IBG05	ZX.150IBG05

Technical data

Frame in painted steel sheet
Pneumatic wheels
Lifting hook
Power absorption: 2.2Kw 2800g/min
Coverage: 150m2
Fan jet: 21m with 21°C (without wind)
Elevation: 0° +40° manual
Fan diameter: 410mm
Noise: < 87Lwa
No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles
Water inlet kit complete with pressure stabiliser
Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons
Electric motor 1450Rpm 1.5Kw for 6,5 and 11l/min, 2.2Kw for 15l/min, 3Kw for 21 l/min
Integrated by-pass valve
Protection rating: IP54

optionals / ZX.8402

ZX.2322

Water hardness analysis kit

ZX.0905-10

Water supply kit, 10m with screw quick couplings

ZX.KSFM2

Sterilizer kit for Fog Maker Elefantino
