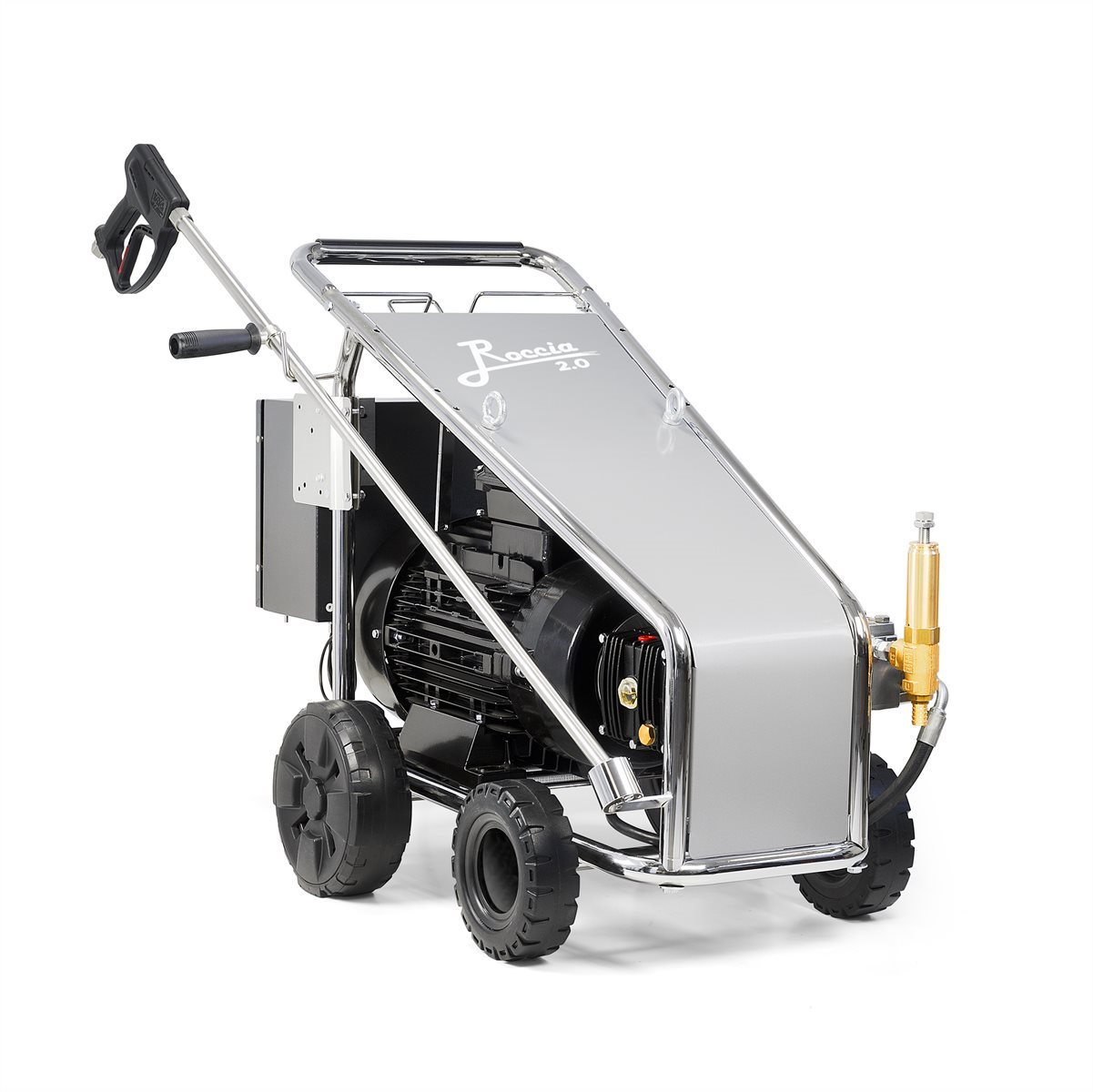

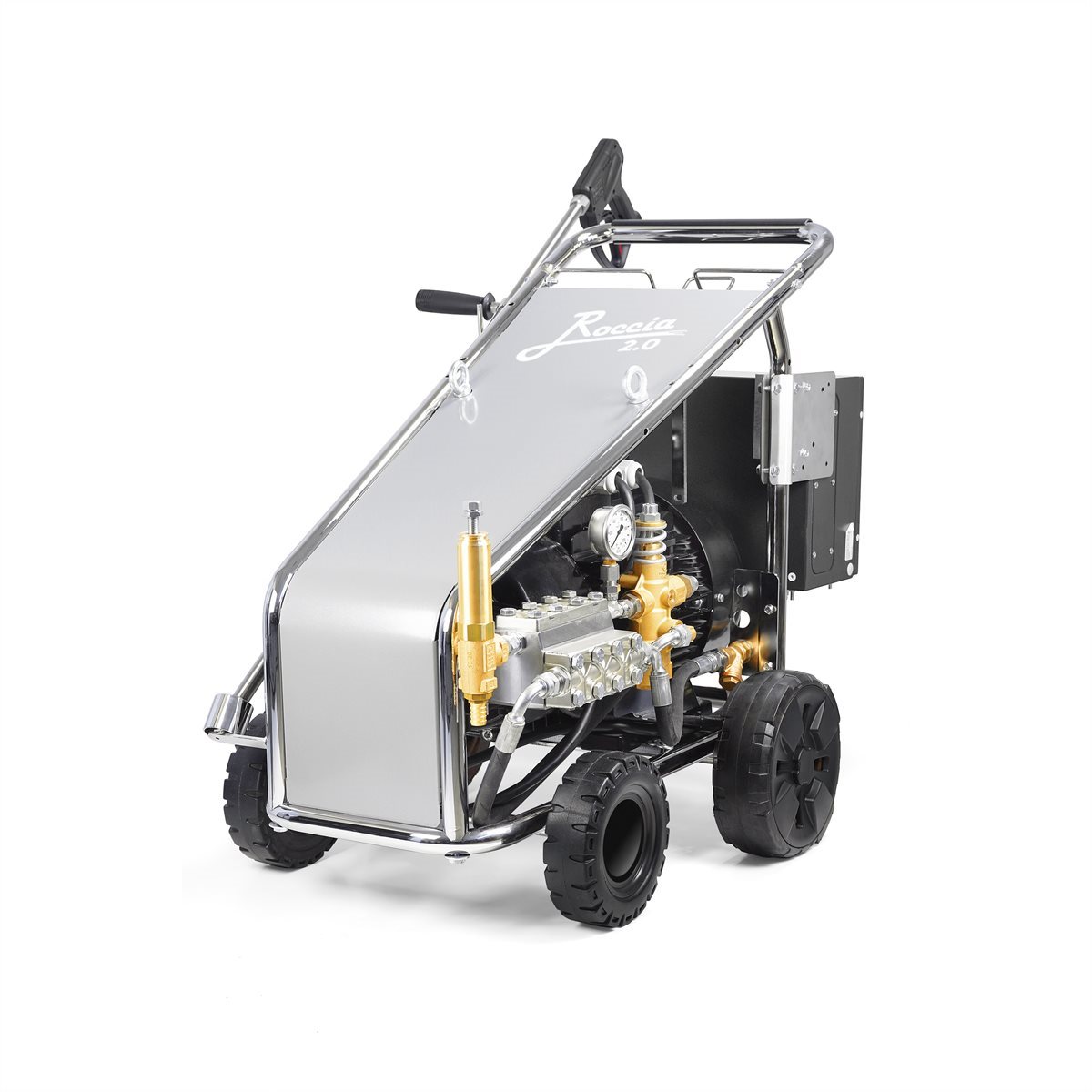

Roccia 2.0

H.p. washer for worksite. Roccia is the answer for companies that need to perform tough, heavy-duty jobs and thus require: power for cleaning, scrubbing or sandblasting; reliability for short and long periods; safety for the operators and the machine; economy of time and money. Roccia is the ideal solution for shipyards, road yard, mining industries, etc.

highlights

TUBULAR FRAME SET

Sturdy and durable in chromed steel

MOTOR-PUMP DRIVE

with flexible coupling with dual flange=less mechanical shock, longer pump life

CONTROL PANEL

•Star-delta starting device
•Master ON/OFF switch
•Emergency stop button
•Auxiliary circuit 24V

INDUSTRIAL ACCESSORIES

Compensated gun with AISI 304 stainless steel lance = long-lasting

Technical data

CODE	Model	Version	Pressure	Flow rate	Rpm	Power	Weight	Preventive maintenance 750 hrs	Preventive maintenance 1500 hrs

ZX.2372	1450 500/16	By-pass	500bar	16l/min	1450	20,0hp/15kW (3x400V-50Hz)	200kg	ZX.75UD01	ZX.150UD01

Data, tables and pictures are purely indicative. Any changes can be made by the manufacturer without prior notice.

Technical data

Tubular frame set made of chromed steel
Industrial pump 1450g/min, with crankshaft, bronze connecting rods, stainless steel head, 3 ceramic plungers, stainless steel valves, "U" section water seals with anti-extrusion ring. Complete with safety valve
Electric motor 1450Rpm 50Hz complete with electric box IP55
Control panel with star-delta starting device, complete with master ON/OFF switch, emergency stop button and 5m electric cable
Motor-pump drive via flexible coupling housed in motor flange
Water inlet filter with AISI 316 stainless steel 7" cartridge
Dimensions WxLxH: 1120 x 650x 850mm

Standard equipment

H.p. hose 10m
Industrial compensating spray gun 500bar, 80l/min
Professional lance 1250mm stainless steel
H.p. nozzle 25° high resolution

optionals / ZX.2372
