Coccinella 2.0

Portable h. p. washer. Easy, safe and effortless washing.

See catalogue

gallery

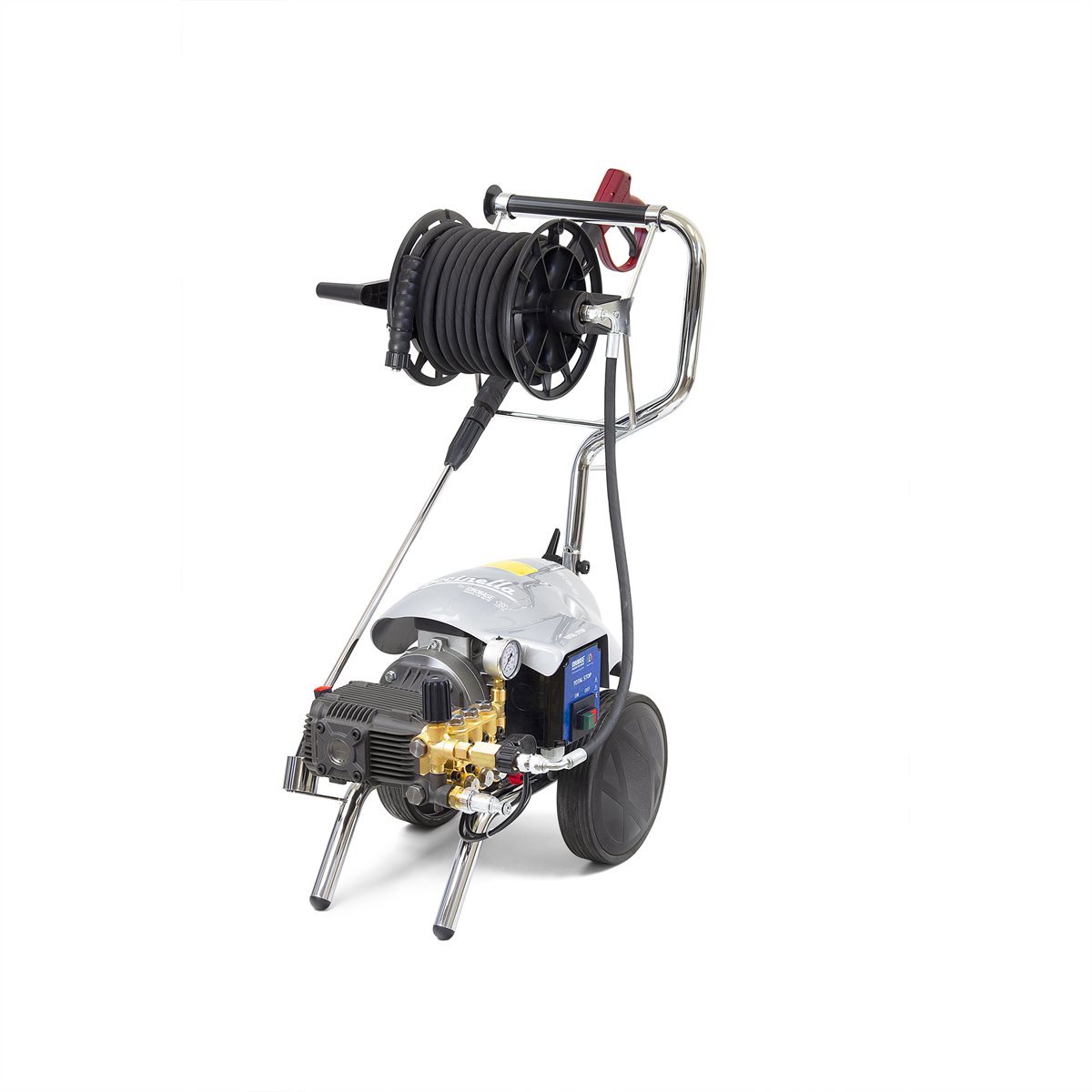

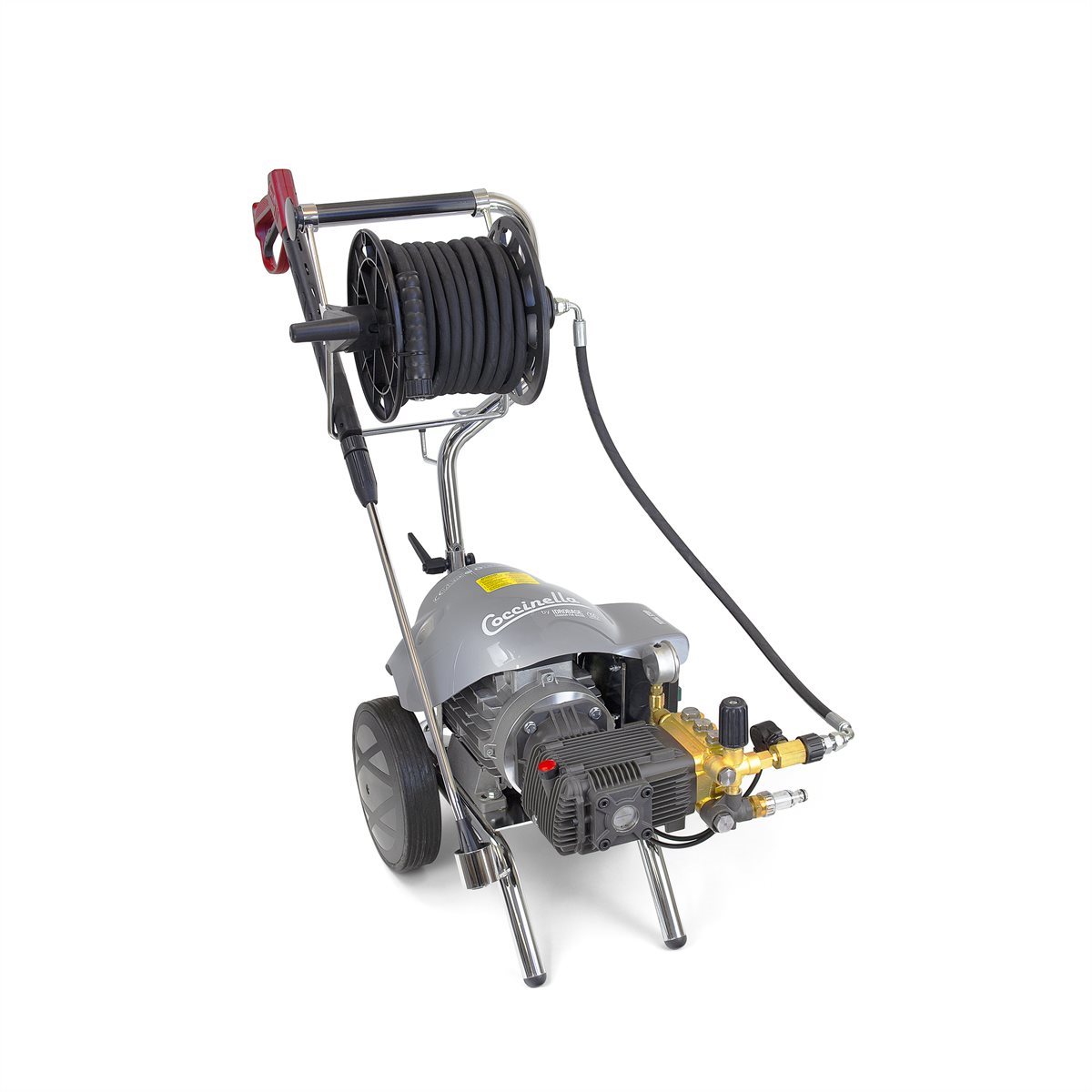

Portable h. p. washer. Coccinella 2.0 enables a perfect wash, easily, safely and effortlessly. It is ideal for companies that use the h.p. washer for a medium amount of time (2 hours a day).

highlights

PROFESSIONAL PUMP

1450Rpm, crankshaft, brass head, 3 ceramic plungers.

FLANGE

Flange between pump and motor

PROFESSIONAL GUN

Professional spray gun w/extension

OPTIONAL MANUAL HOSE REEL

Hose reel kit composed of: chromed support, manual hose reel and connection hose

Technical data

CODE	Peso	Potenza	g/min	Portata	Pressione	Versione	Modello

ZX.2340-TS	49kg	3,0hp/2,2kW (1x230V-50Hz)	1450	11l/min	100bar	Total Stop	1450 100/11 TS

ZX.2341-TS	1450 150/15 TS	Total Stop	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	51kg

Technical data

Frame set made of chromed steel
Cover made of thermoformed polystyrene
Professional pump 1450Rpm, crankshaft, brass head, 3 ceramic plungers. Complete with bolt unloader valve and glycerine-filled pressure gauge
Electric motor 1450Rpm 50Hz, complete with ON/OFF, circuit breaker switch and 5m electric cable
Dimensions WxLxH: 440 x 667 x 950mm

Standard equipment

H.p. hose 8m with screw quick couplings
Professional spray gun w/extension

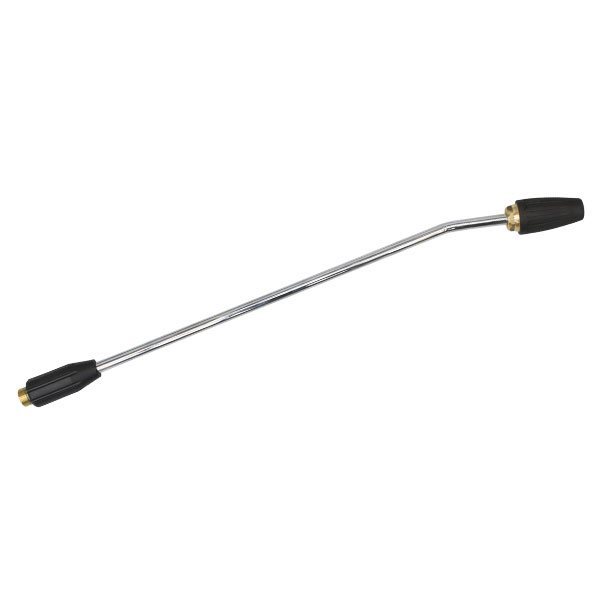

Lance extension 580mm
H.p. nozzle 25° high resolution

optionals / ZX.2340-TS
