Club dei Riparatori / Screw M22x1,5 ø14
products
CDR.0010
CDR.0010
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: M22x1,5 F
Outlet: M22x1,5 F ø14
CDR.7013
CDR.7013
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G3/8" F
Outlet: M22x1,5 F ø14
CDR.7014
CDR.7014
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G3/8" M
Outlet: M22x1,5 F ø14
CDR.7015
CDR.7015
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G3/8" F
Outlet: M22x1,5 M ø14
CDR.7016
CDR.7016
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/4" F
Outlet: M22x1,5 M ø14
CDR.7017
CDR.7017
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G3/8" M
Outlet: M22x1,5 M ø14
CDR.7062
CDR.7062
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: M22x1,5 M ø14
Outlet: M22x1,5 M ø14
CDR.7107
CDR.7107
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/4" F
Outlet: M22x1,5 F ø14
CDR7107-S
CDR.7107-S
Screw quick couplings M22x1,5 F ø14, short made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/4" F
Outlet: M22x1,5 F ø14

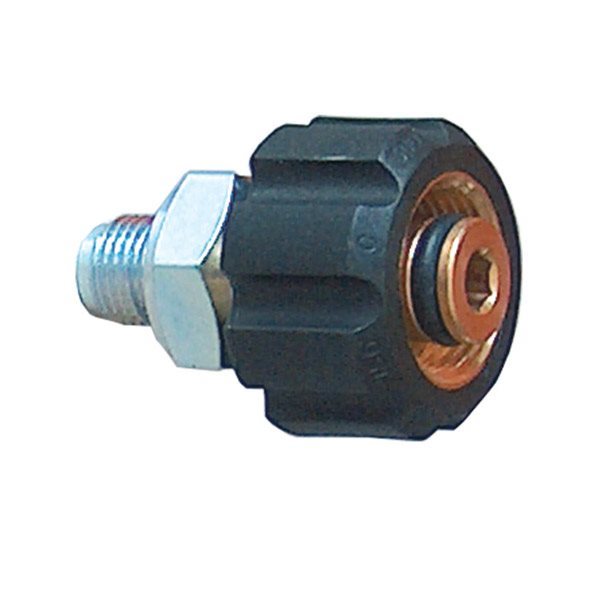

CDR7108
CDR.7108
Brass screw quick coupling, M22x1,5F ø14-G1/4" M
CDR7108-S
CDR.7108-S
Brass short quick coupling, M22x1,5 F ø14-G1/4" M
CDR7111(0)
CDR.7111
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/4" M
Outlet: M22x1,5 M ø14
CDR.7112
CDR.7112
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: M22x1,5 M
Outlet: M22x1,5 M ø14
CDR.7118
CDR.7118
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/2" M
Outlet: M22x1,5 F ø14
CDR.7119
CDR.7119
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/2" F
Outlet: M22x1,5 F ø14
CDR.7129
CDR.7129
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/2" M
Outlet: M22x1,5 M ø14
CDR.7130
CDR.7130
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Technical data
Inlet: G1/2" F
Outlet: M22x1,5 M ø14
ZX0572
ZX.0572
Set of Dolly anti-extrusion ring, for screw and swivel quick coupling, fitting: PA and CdR
Technical data
Quantity: 1x100
ZX0582
ZX.0582
Set of Dolly O-Rings no. 2, per screw and swivel quick coupling, m22x1,5 F ø14, fitting: PA, CdR and for Diesse type hoses
Technical data
Quantity: 1x100
