Fog Maker Elefantino DOS

Pressure 80bar Fan jet 21m 30 nozzles

See catalogue

gallery

• Elefantino DOS: ideal for sanitization and odor suppression

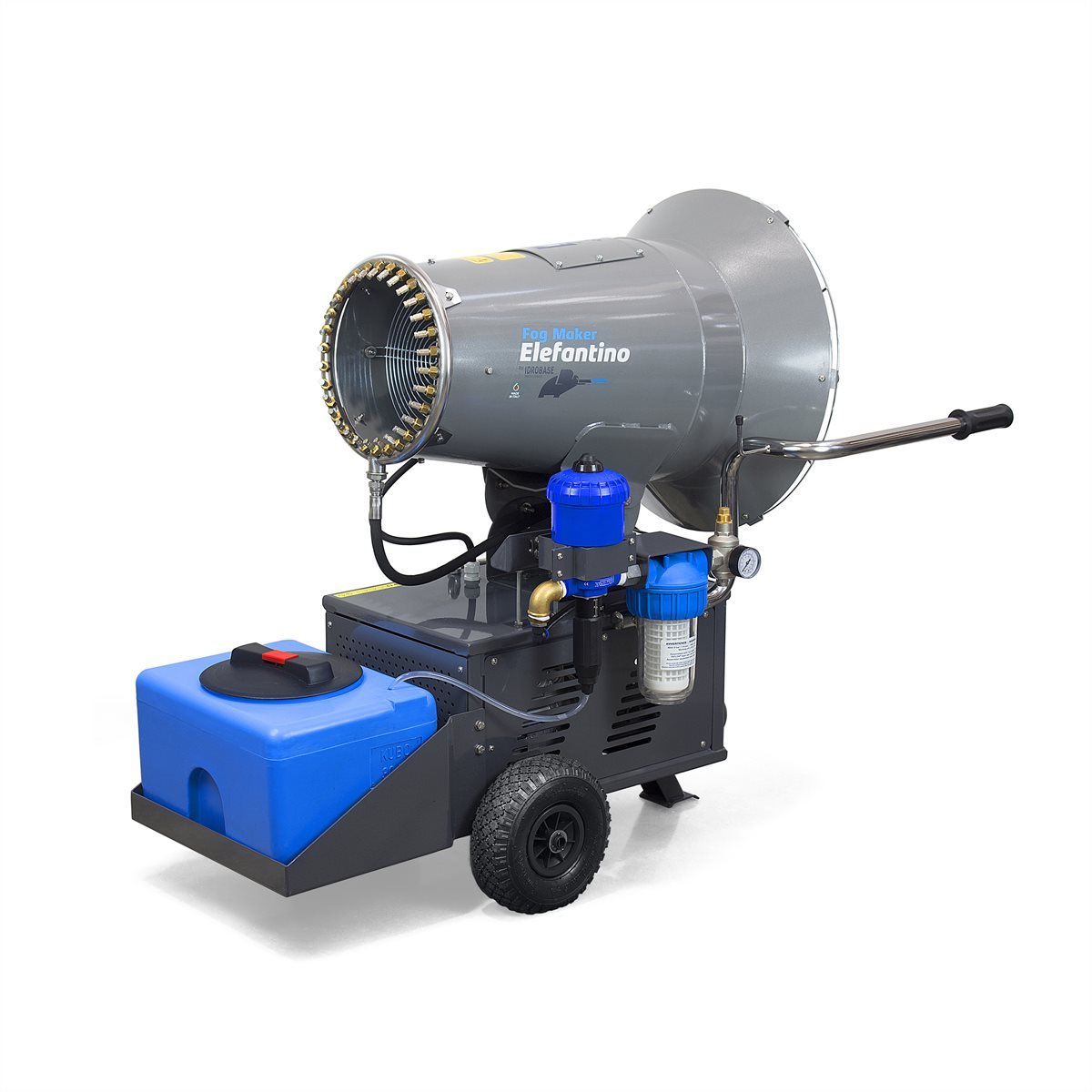

Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 21 metres.

highlights

Technical data

CODE	Model	Pressure	Flow rate	Drop size	Power (3x400V-50Hz)	Weight	Dimension LxPxH (mm)	Preventive maintenance 750 hrs (standard)	Preventive maintenance 1500 hrs (optional)

ZX.8401-DOS	Elefantino DOS 6,5	80bar	6,5l/min	12mcr	3,7Kw	107kg	640x920x1050mm	ZX.75IBG10	ZX.150IBG10

ZX.8402-DOS	Elefantino DOS 11	70bar	11l/min	18mcr	3,7Kw	107kg	640x920x1050mm	ZX.75IBG02	ZX.150IBG02

ZX.8403-DOS	Elefantino DOS 15	80bar	15l/min	24mcr	4,4Kw	110kg	640x920x1050mm	ZX.75IBG03	ZX.150IBG03

ZX.8404-DOS	Elefantino DOS 21	70bar	21l/min	24mcr	5,2Kw	133kg	640x920x1050mm	ZX.75IBG05	ZX.150IBG05

Technical data

Mechanical proportional dispenser 0,2-2%
30L Tank for solution
Dimension WxLxH: 640x920x1050mM

Frame in painted steel sheet
Pneumatic wheels
Lifting hook
Power absorption: 2.2Kw 2800g/min
Coverage: 150m2
Fan jet: 21m with 21°C (without wind)
Elevation: 0° +40° manual
Fan diameter: 410mm
Noise: < 87Lwa
No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles
Water inlet kit complete with pressure stabilise
Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons
Electric motor 1450Rpm 1.5Kw for 6,5 and 11l/min, 2.2Kw for 15l/min, 3Kw for 21 l/min
Integrated by-pass valve
Protection rating: IP54
