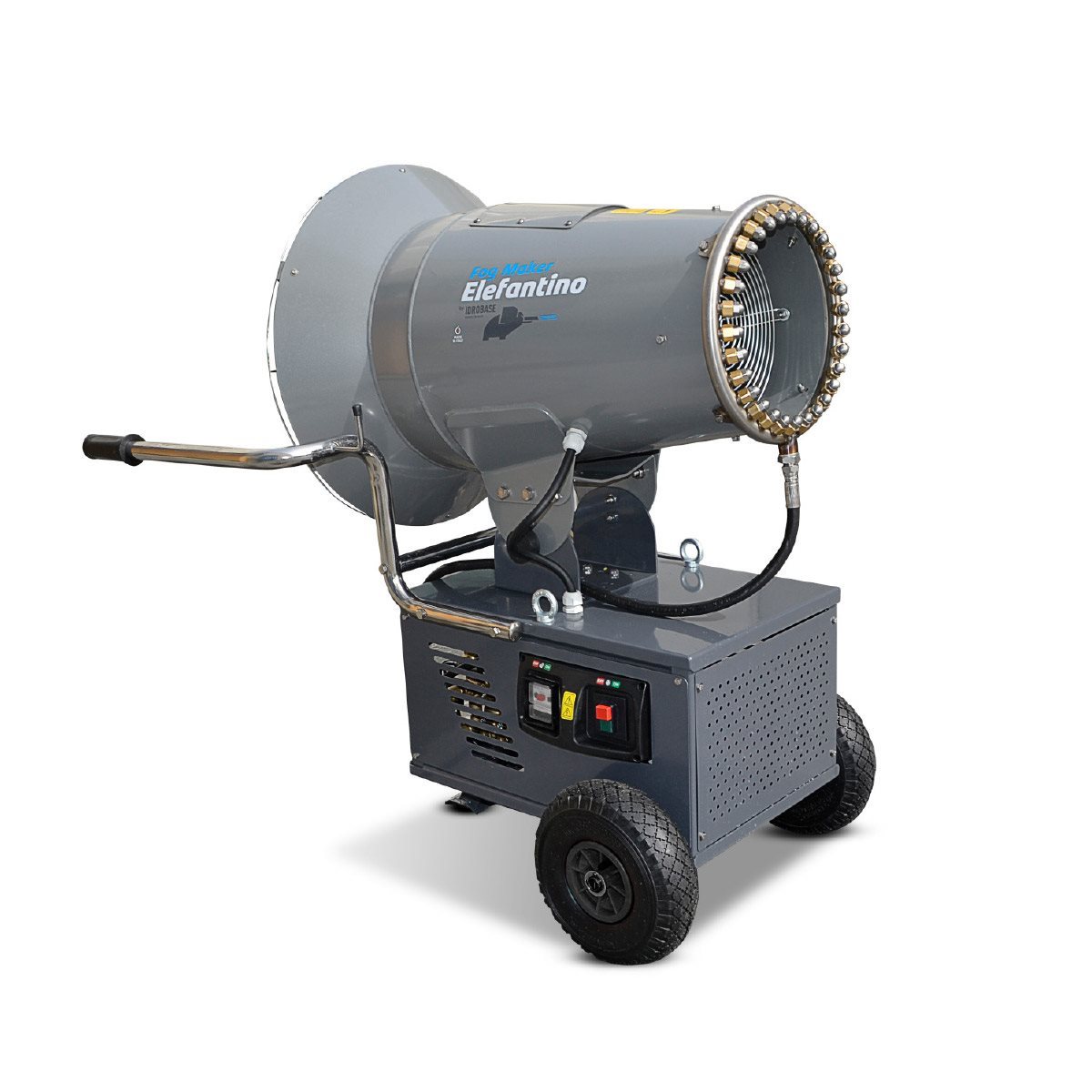

Fog Maker Elefantino Lavaggio

Pressure 80bar Fan jet 21m 30 Nozzles

2 in 1 Fog Maker + HP Washer

Misting for air pollution reduction (PM2.5 and PM10) and dust suppression. Optimal for washing dirty surfaces.

WASHING KIT (INCLUDED)
• RED 40 spray gun, inlet M22x1,5 M, F swivel ball outlet KW type
• CdR 80 lance, 700mm M quick inlet KW type, nozzle 25°
• Piuma foam lance, M quick inlet KW type
• H.p. hose R1 5/16”, 315bar, 20m, M22x1,5 F-F

highlights

Technical data

CODE	Model	Pressure	Flow rate	Drop size	Power (3x400V-50Hz)	Weight	Preventive maintenance 750 hrs (standard)	Preventive maintenance 1500 hrs (optional)

ZX.8403-L	Elefantino Lavaggio 15	80bar	15l/min	24mcr	4,4Kw	105kg	ZX.75IBG03	ZX.150IBG03

ZX.8404-L	Elefantino Lavaggio 21	70bar	21l/min	24mcr	5,2Kw	130kg	ZX.75IBG05	ZX.150IBG05

Technical data

Technical features
•Frame in painted steel sheet
• Pneumatic wheels
• Lifting hook
• Protection rating: IP54
• Dimensions WxLxH: 640x920x1050mm

Fan technical specifications
• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles
• Coverage: 150m2
• Power absorption: 2.2Kw 2800g/min
• Fan jet: 21m with 21°C (without wind)
• Elevation: 0° +40° manual
• Fan diameter: 410mm
• Noise: < 87Lwa

Pump module technical specifications
• Pressure: 70bar for 15l/min version, 80bar for 21l/min version.
• Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons
• Electric motor 1450Rpm 2.2Kw for15l/min, 3Kw for 21l/min
• Integrated by-pass valve

Standard equipment

WASHING KIT (INCLUDED)
• RED 40 spray gun, inlet M22x1,5 M, F swivel ball outlet KW type
• CdR 80 lance, 700mm M quick inlet KW type, nozzle 25°
• Piuma foam lance, M quick inlet KW type
• H.p. hose R1 5/16”, 315bar, 20m, M22x1,5 F-F

optionals / ZX.8404-L

ZX.2322

Water hardness analysis kit

ZX.0905-10

Water supply kit, 10m with screw quick couplings

ZX.KSFM2

Sterilizer kit for Fog Maker Elefantino
