CODE | Model | N° of nozzles | Pressure | Flow rate | Drop size | Drives with 50L tank | Power | Dimensions | Weight |
---|---|---|---|---|---|---|---|---|---|
ZX.2149-BL | ADI BLU | 10 | 60bar | 0,7l/min | 10mcr | ~920 | 200W (220V-50Hz) | (L)3550x800x(H)3150; (L1)9550x800x(H1)2350 | 35kg |
WARNING
Il kit comprende:

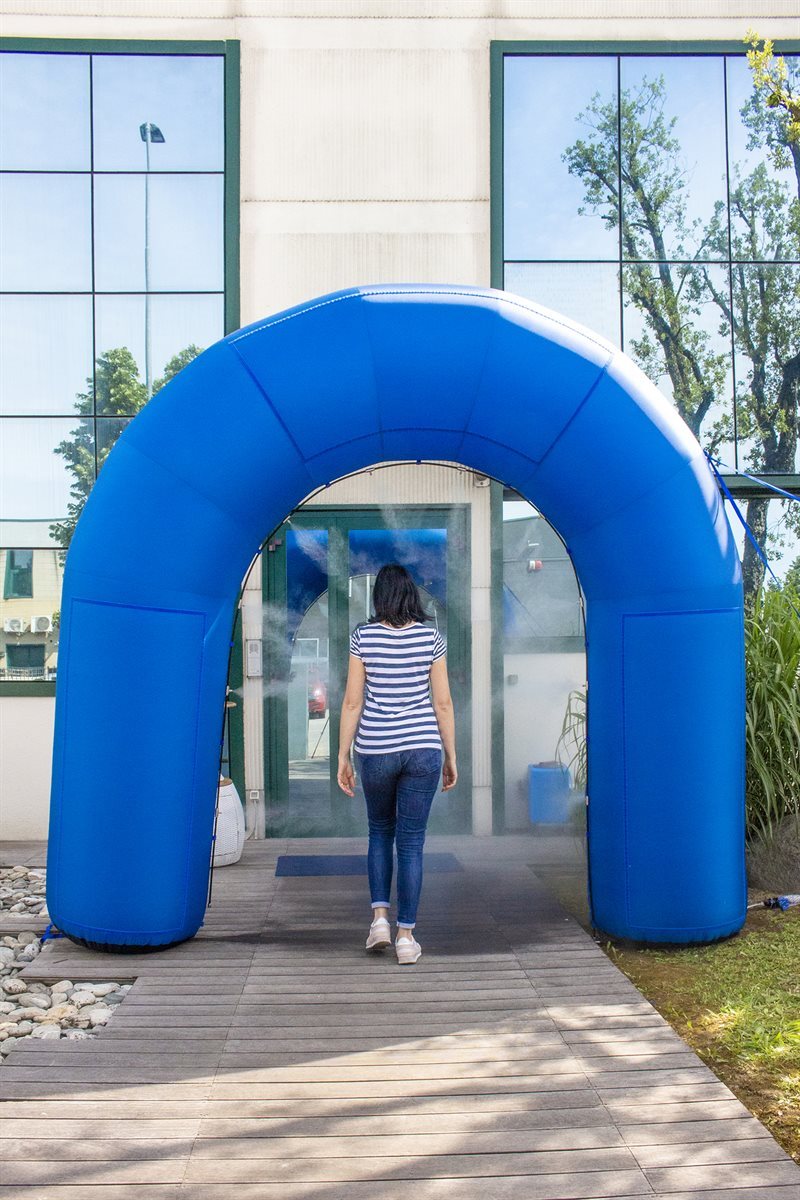

- inflatable arch

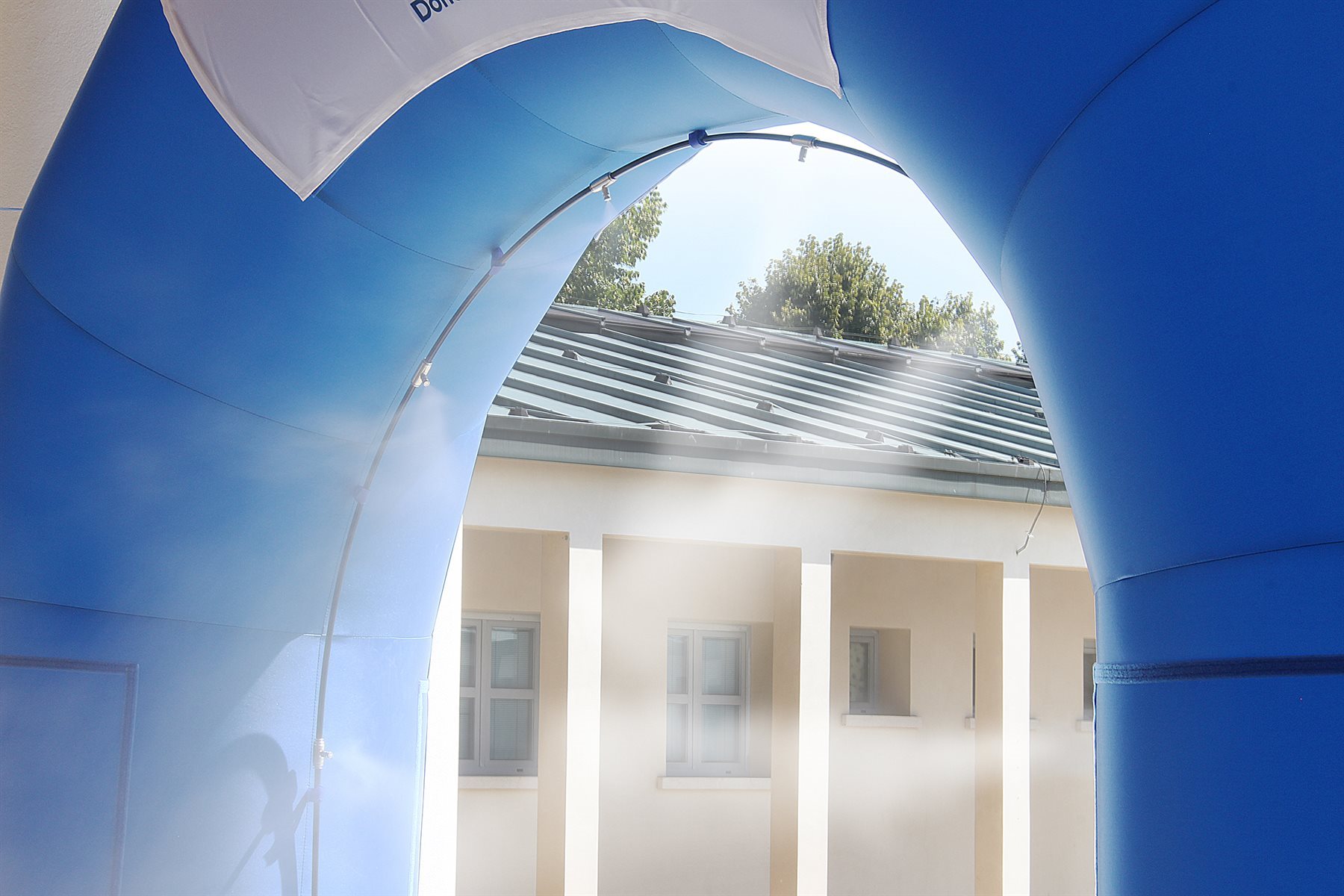

- line kit: polyamide pipe kit (PA 125r), diameter ø9.6mm, rolls of 3m, black,

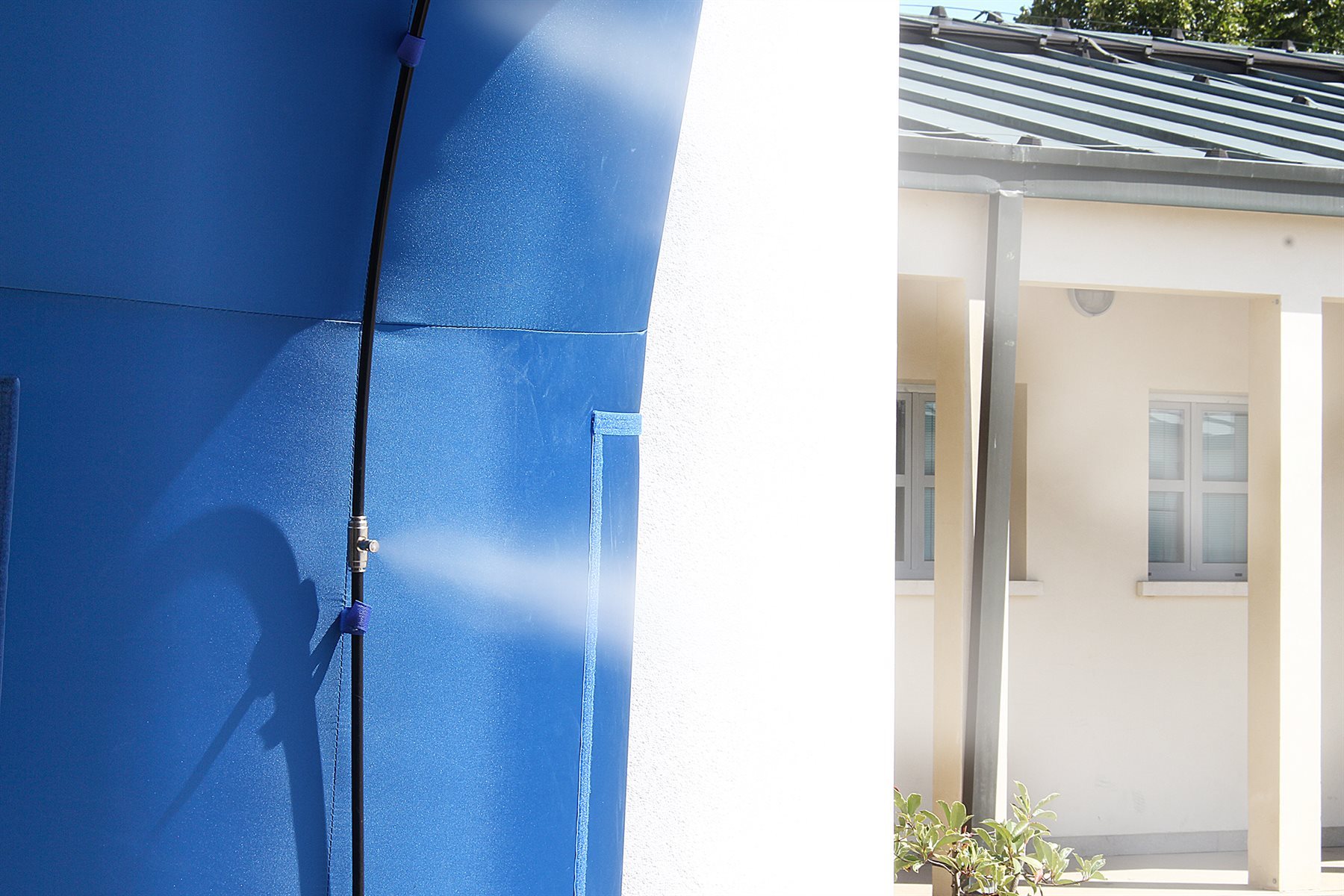

with n°10 AISI 303 nozzles + anti-drip valve, 0,20mm hole
- pump unit, mono-phase electro pump, 60 bar, 2 plungers, 0,7l/min
- electric control system with operating time programmer
- liquid suction kit from the tank, with float valve for the automatic stop.
- tank: 50 liter tank for product to be nebulized ready for use.
- polyamide pipe kit, diameter ø9.6mm, rolls of 100m, black.
- foot control
