Idro P.

Professional high pressure washer. Idro enables a perfect wash, easily, safely and effortlessly. Optimal for companies using high pressure washers continuously.

highlights

"COMFORT LINE" ACCESSORIES

When working helps well-being

TUBULAR FRAME SET

Strudy and durable in chromed steel

PETROL ENGINE

Extremely reliable. Fuel: green petrol

highlights-deceleratore-automatico-245x245px(0)

AUTOMATIC RPM REGULAR

Equipped with= minimum fuel consumption when the gun is not operated

Technical data

CODE	Model	Version	Pressure	Flow rate	Rpm	Power	Weight	Maintenance set 500 hrs	Maintenance set 1000 hrs

ZX.2282-R	3400 190/15	By-pass	190bar	15l/min	3400	9hp	52kg	ZX.50IBG17	ZX.100IBG17

Data, tables and pictures are purely indicative. Any changes can be made by the manufactures without prior notice.

Technical data

Tubolar frame set made of chromed steel treated with polyester
Industrial pump 3400Rpm, with crankshaft, brass head, 3 ceramic plungers, by-pass valve, and glycerine-filled pressure gauge
Petrol engine Rato 3400 Rpm )hp with pull start and automatic rpm regulator.
Displacement 301cc, 5,4L tank cpacity
Pump 1450Rpm, with crankshaft, brass head, 3 ceramic plungers. Complete with bolt unloader valve, detergent injector and glycerine-filled pressure gauge
Electric motor 1450Rpm 50Hz, complete with ON/OFF, circuit breaker switch and 5m electric cable
H.p. hose R1 5/16", pressure 315bar, couplings M22x1,5 F

Standard equipment

H.p. hose R1, 8m, with screw quick couplings
Spray gun w/extension
580mm lance extension
H.p. nozzle 25° high resolution

optionals / ZX.2282-R

CDR.7062

Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C

ZX.15W40-1

Mineral oil SAE 15W 40, Ideal for high pressure pumps, 1L

CDR.0466

Service kit VB 56

ZN.CC100B3P3P

315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK

ZN.CC150B3P3P

315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK

ZN.CC200B3P3P

315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK

CDR.1239

Inlet water filter fitting Kärcher BIG, (for HOBBY and SEMI-PROFESSIONAL H.P. WASHERS), inlet G3/4" F, outlet G3/4" M, max pressure 8bar Cartridge 250 mesh (80mcrs), BLACK ring nut. ø62,50mm

ZY.040-T6M

Terminal with rotating nozzle - 040

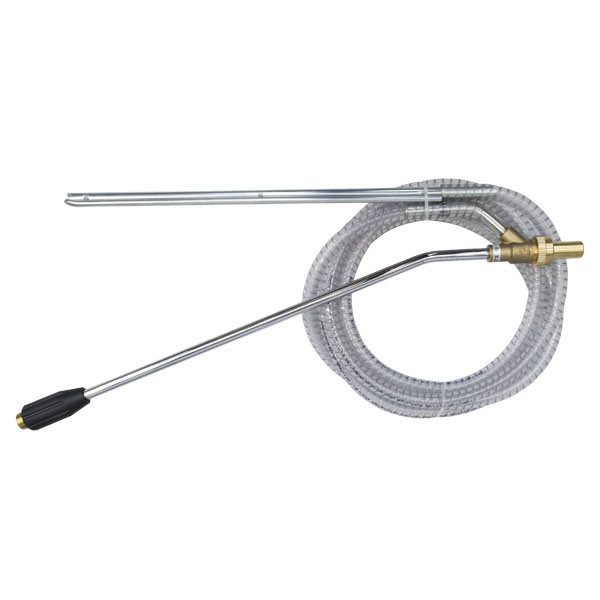

ZS.040-T6M

ZL.1V755Z

Lunga Double lance kit 1 with spray gun PRO1 M22x1,5 M, diverter with anodized aluminum body, professional foam lance ø2.1mm, with detergent injector ø1.4mm and filter with non-return valve
