Lince Disinfettante

Fog maker for disinfection

See catalogue

gallery

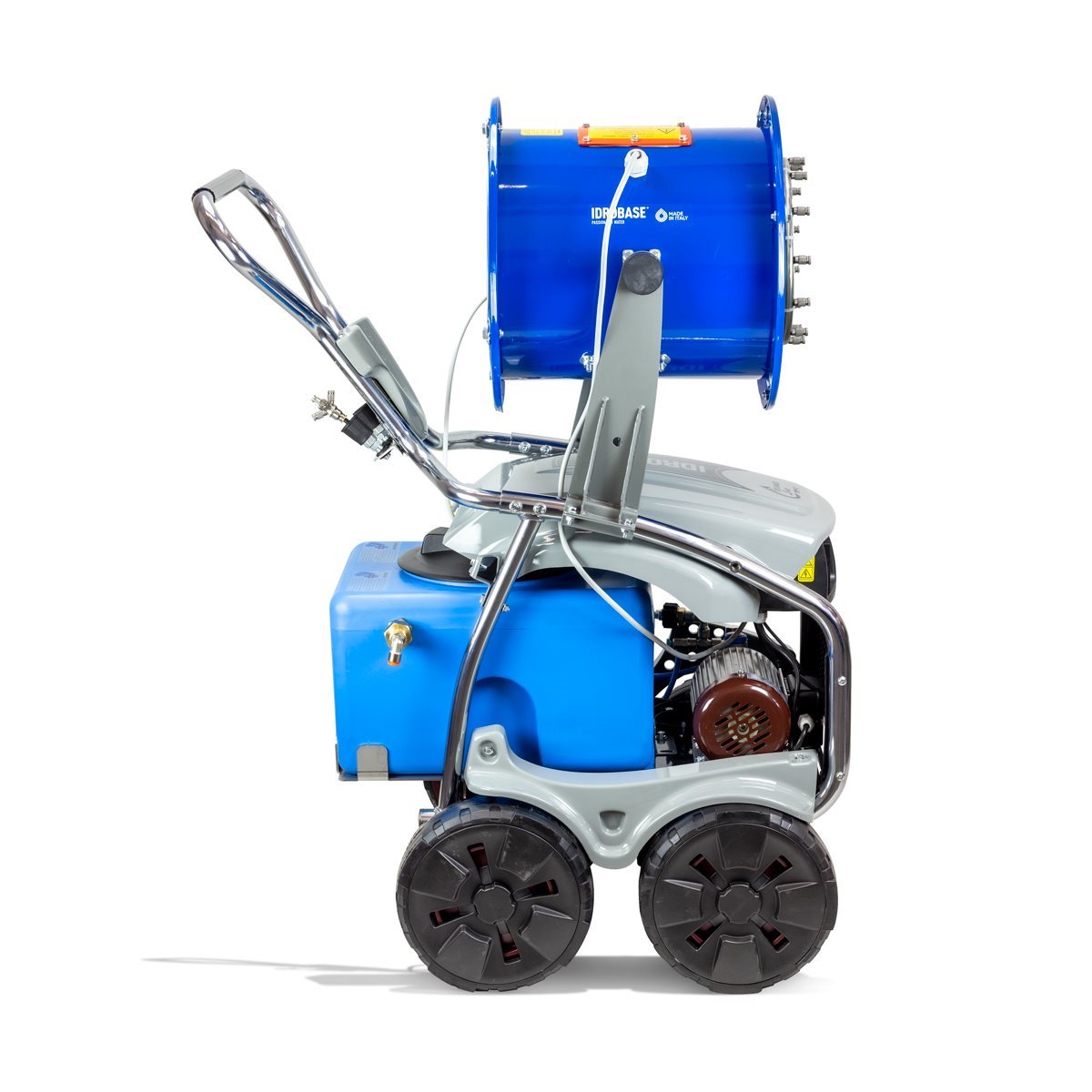

Fog maker for disinfection
Mobile high pressure fog maker complete with fan and ring of nozzles, 60bar, 1l/min pump module, 30L tank,ON-OFF electric panel, fan jet: 7m.

• Excellent for disinfecting indoor and outdoor
• Practical and handy, with 30 minutes autonomy

Technical data

CODE	Modello	Pressure	Flow rate	N. nozzles	Drop size	Power	Weight	Preventive maintenance 500 hrs (standard)	Preventive maintenance 1000 hrs (optional)

ZX.8201-L	LINCE DISINFETTANTE	60bar	1l/min	13	12mcr	0,75Kw	60kg	ZX.50IBG19	ZX.100IBG19

WARNING

All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.
For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.
The use of the Lince Disinfettante with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical data

Technical features • Frame in painted steel sheet
• Tank 30L
• Protection rating: IP54
• Dimensions WxLxH 800x650x1200mm

Fan technical specifications
• No. of nozzles: 1 ring with 10 nozzles
• Maximun coverage: 10 m2
• Power absorption: 0.8Kw 2800g/min
• Fan jet: 7m (without wind)
• Elevation: 0° +30°
• Fan diameter: 410mm
• Noise: < 80Lw

Pump module technical specifications
• Pressure: 60bar
• Axial pump module: 1450Rpm, 2 ceramic pistons
• Electric motor: 1450Rpm 250W
• Integrated by-pass valve

Standard equipment

LINCE DISINFECTANT LANCE KIT cod ZX.8201-KD (included)
• Pipe a.p. thermoplastic, 8m
• Lance 900mm with quick nozzle holder
• 40 ° fan nozzle
• 5 nozzles support
• Nebulization head with 5 nozzles with quick coupling M

optionals / ZX.8201-L

CDR.2023-25

Idro Safe - 25L. Disinfectant and antibacterial product of medical surgical device grade

ZX.2350-10

BKD®-Purple 10L. Sanitizer concentrate
