Club dei Riparatori / 210bar, R1 1/4", DN6
products
CDR11G
CDR.11G
Crimp fitting with eyelet, for hose 1/4” - DN6 for 1/4” perforated socket screw.
Made of galvanised steel

CDR11H
CDR.11H
Crimp fitting with eyelet, for hose 1/4” - DN6for 3/8” perforated socket screw.
Made of galvanised steel

CDR1727-14
CDR.1727-14
G1/4” M perforated socket screw.
Made of galvanised steel
CDR1727-38
CDR.1727-38
G3/8” M perforated socket screw.
Made of galvanised steel

CDR.1A
CDR.1A
Black bend res.
CDR1R
CDR.1R
Crimp fitting G1/4" F
CDR1S
CDR.1S
Crimp fitting G1/4" M
CDR1T
CDR.1T
Crimp fitting G3/8" F
CDR1U
CDR.1U
Crimp fitting G3/8" M
CDR.5V
CDR.5V
Crimp bushing
CDR6J
CDR.6J
BLACK ring nut for fitting M22x1,5 F ø14
CDR6K
CDR.6K
BLACK "LONG" ring nut for fitting M22x1,5 F ø14
CDR.6M
CDR.6M
YELLOW ring nut for fitting M22x1,5 F ø14
CDR6N
CDR.6N
BLUE ring nut for fitting M21x1,5 F ø14
CDR.6P
CDR.6P
Crimp insert ø14
CDR.7O
CDR.7O
Crimp fitting HOSE CONNECTION
CDR.8N
CDR.8N

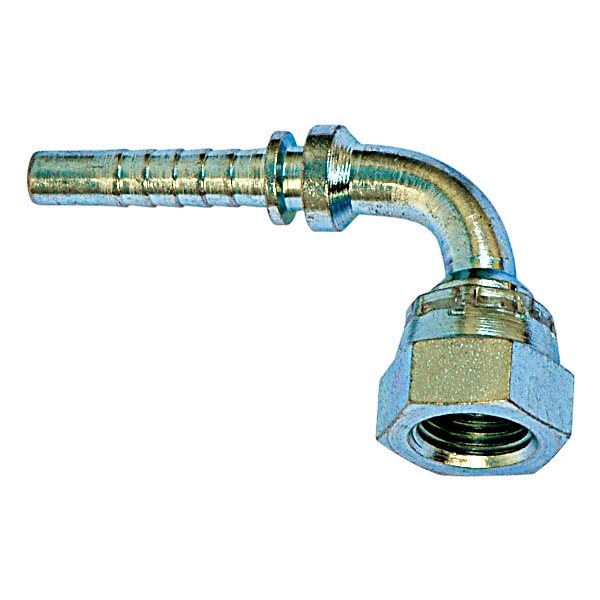

Crimp fitting G1/4" F - 90°
CDR.8O
CDR.8O
Crimp fitting G3/8" F - 90°
ZN.AC080
ZN.AC080
210bar, R1 1/4" - DN6 - High pressure hose: BLACK
Ideal for producing h.p. hoses for semi-professional cold and hot water high pressure washers
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 8m
ZN.AC080X1R1R
ZN.AC080X1R1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G1/4" F - G1/4" F
Length: 8m
ZN.AC080X1T1T
ZN.AC080X1T1T
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 8m
ZN.AC080X2P1R
ZN.AC080X2P1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - G1/4" F
Length: 8m
ZN.AC080X2P2P
ZN.AC080X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 8m
ZN.AC100
ZN.AC100
210bar, R1 1/4" - DN6 - High pressure hose: BLACK
Ideal for producing h.p. hoses for semi-professional cold and hot water high pressure washers
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 10m
ZN.AC100X1R1R
ZN.AC100X1R1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose: 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G1/4" F - G1/4" F
Length: 10m
ZN.AC100X1T1T
ZN.AC100X1T1T
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose: 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure: 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 10m
ZN.AC100X2P1R
ZN.AC100X2P1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose: 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - G1/4" F
Length: 10m
ZN.AC100X2P2P
ZN.AC100X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 10m
ZN.AC150
ZN.AC150
210bar, R1 1/4" - DN6 - High pressure hose: BLACK
Ideal for producing h.p. hoses for semi-professional cold and hot water high pressure washers
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 15m
ZN.AC150X1R1R
ZN.AC150X1R1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G1/4" F - G1/4" F
Length: 15m
ZN.AC150X1T1T
ZN.AC150X1T1T
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø: 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 15m
ZN.AC150X2P1R
ZN.AC150X2P1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids: R1
Inside Ø : 6,4mm
Outside Ø 12,2mm: 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - G1/4" F
Length: 15m
ZN.AC150X2P2P
ZN.AC150X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids: R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 15m
ZN.AC200
ZN.AC200
210bar, R1 1/4" - DN6 - High pressure hose: BLACK
Ideal for producing h.p. hoses for semi-professional cold and hot water high pressure washers
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 20m
ZN.AC200X1R1R
ZN.AC200X1R1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G1/4" F - G1/4" F
Length: 20m
ZN.AC200X1T1T
ZN.AC200X1T1T
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour: BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 20m
ZN.AC200X2P1R
ZN.AC200X2P1R
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids: R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - G1/4" F
Length: 20m
ZN.AC200X2P2P
ZN.AC200X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 20m
ZN.AC500
ZN.AC500
210bar, R1 1/4" - DN6 - High pressure hose: BLACK
Ideal for producing h.p. hoses for semi-professional cold and hot water high pressure washers
Technical data
Hose : 1/4"
Braids : R1
Inside Ø : 6,4mm
Outside Ø : 12,2mm
Working pressure : 210bar
Burst pressure : 840bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 50m
ZX1715-14
ZX.1715-14
Crimp fitting with eyelet, for hose 1/4” - DN6 complete with perforated socket G1/4” M screw and washers.
Made of galvanised steel
ZX1715-38
ZX.1715-38
Crimp fitting with eyelet, for hose 1/4” - DN6 complete with perforated socket screw and washers G3/8” M.
Made of galvanised steel
ZX2P
ZX.2P
Crimp fitting M22x1,5 F ø14 BLACK ring nut
ZX.3E
ZX.3E
Crimp fitting M22x1,5 F ø14 BLACK "LONG" ring nut
ZX5M
ZX.5M
Crimp fitting M22x1,5 F ø15 BLUE ring nut
ZX5O
ZX.5O
Crimp fitting ø10 type K complete
