CDR11J
CDR.11J
Crimp fitting with eyelet, for hose 5/16” - DN8 for 3/8” perforated socket screw.
Made of galvanised steel
CDR1727-38
CDR.1727-38
G3/8” M perforated socket screw.
Made of galvanised steel

CDR.1D
CDR.1D
Black bend rest. R1
CDR.1F
CDR.1F
Blue bend rest. R1
CDR1Z
CDR.1Z
Crimp fitting G3/8" F
CDR2A
CDR.2A
Crimp fitting G3/8" M
CDR2B
CDR.2B
Crimp fitting G1/2" F
CDR2H
CDR.2H
Crimp fitting G3/8" F AISI 316 STAINLESS STEEL
CDR.5W
CDR.5W
Crimp bushing R1
CDR.5X
CDR.5X
Crimp bushing R1 AISI 316 STAINLESS STEEL
CDR6J
CDR.6J
BLACK ring nut for fitting M22x1,5 F ø14
CDR6K
CDR.6K
BLACK "LONG" ring nut for fitting M22x1,5 F ø14
CDR6N
CDR.6N
BLUE ring nut for fitting M21x1,5 F ø14
CDR6W
CDR.6W
Insert ø14
CDR7394
CDR.7394
Crimp fitting M22x1,5 F ø14 swivel
CDR7A
CDR.7A
Insert ø14, neck 5mm - ROUNDED
CDR7P
CDR.7P
Crimp fitting HOSE CONNECTION
CDR8P
CDR.8P
Crimp fitting G3/8" F - 90°
ZB.CC080
ZB.CC080
315bar, R1 5/16" - DN8 - High pressure hose: BLUE
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Length: 8m
ZB.CC080D1Z1Z
ZB.CC080D1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose: 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Ends/Size: G3/8" F - G3/8" F
Length: 8m
ZB.CC080D3P3P
ZB.CC080D3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature: -40°C +150°C
Colour : BLUE
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 8m
ZB.CC100
ZB.CC100
315bar, R1 5/16" - DN8 - High pressure hose: BLUE
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids: R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 10m
ZB.CC100D1Z1Z
ZB.CC100D1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature: -40°C +150°C
Colour : BLUE
Ends/Size: G3/8" F - G3/8" F
Length: 10m
ZB.CC100D3P3P
ZB.CC100D3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 10m
ZB.CC150
ZB.CC150
315bar, R1 5/16" - DN8 - High pressure hose: BLUE
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Length: 15m
ZB.CC150D1Z1Z
ZB.CC150D1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Ends/Size: G3/8" F - G3/8" F
Length: 15m
ZB.CC150D3P3P
ZB.CC150D3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 15m
ZB.CC200
ZB.CC200
315bar, R1 5/16" - DN8 - High pressure hose: BLUE
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Length: 20m
ZB.CC200D1Z1Z
ZB.CC200D1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Ends/Size: G3/8" F - G3/8" F
Length: 20m
ZB.CC200D3P3P
ZB.CC200D3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLUE
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 20m
ZB.CC500
ZB.CC500
315bar, R1 5/16" - DN8 - High pressure hose: BLUE
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLUE
Length: 50m
ZN.CC080
ZN.CC080
315bar, R1 5/16" - DN8 - High pressure hose: BLACK
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 8m
ZN.CC080A4D8A
ZN.CC080A4D8A
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Colour : BLACK
Temperature : -40°C +150°C
Burst pressure : 1260bar
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Ends/Size: M22 ø14 F long - type ø11 K swivel
Length: 8m
ZN.CC080B1Z1Z
ZN.CC080B1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 8m
ZN.CC080B2A1Z
ZN.CC080B2A1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" M - G3/8" F
Length: 8m
ZN.CC080B3P3P
ZN.CC080B3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 8m
ZN.CC080B4D3P
ZN.CC080B4D3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F
Length: 8m
ZN.CC080B4D4D
ZN.CC080B4D4D
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F long
Length: 8m
ZN.CC080B8Z3P
ZN.CC080B8Z3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F swivel
Length: 8m
ZN.CC100
ZN.CC100
315bar, R1 5/16" - DN8 - High pressure hose: BLACK
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 10m
ZN.CC100A4D8A
ZN.CC100A4D8A
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - type ø11 K swivel
Length: 10m
ZN.CC100B1Z1Z
ZN.CC100B1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 10m
ZN.CC100B2A1Z
ZN.CC100B2A1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" M - G3/8" F
Length: 10m
ZN.CC100B3P3P
ZN.CC100B3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 10m
ZN.CC100B4D3P
ZN.CC100B4D3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F
Length: 10m
ZN.CC100B4D4D
ZN.CC100B4D4D
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature: -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F long
Length: 10m
ZN.CC100B8Z3P
ZN.CC100B8Z3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F swivel
Length: 10m

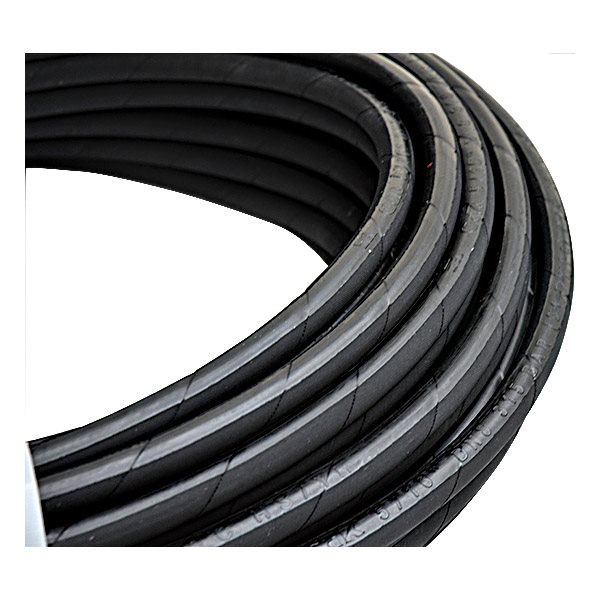

ZN.CC150
ZN.CC150
315bar, R1 5/16" - DN8 - High pressure hose: BLACK
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 15m
ZN.CC150A4D8A
ZN.CC150A4D8A
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - type ø11 K swivel
Length: 15m
ZN.CC150B1Z1Z
ZN.CC150B1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 15m
ZN.CC150B2A1Z
ZN.CC150B2A1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" M - G3/8" F
Length: 15m
ZN.CC150B3P3P
ZN.CC150B3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 15m
ZN.CC150B4D3P
ZN.CC150B4D3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F
Length: 15m
ZN.CC150B4D4D
ZN.CC150B4D4D
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Length: 15m
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F long
ZN.CC150B8Z3P
ZN.CC150B8Z3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F swivel
Length: 15m
ZN.CC200
ZN.CC200
315bar, R1 5/16" - DN8 - High pressure hose: BLACK
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 20m
ZN.CC200A4D8A
ZN.CC200A4D8A
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - type ø11 K swivel
Length: 20m
ZN.CC200B1Z1Z
ZN.CC200B1Z1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" F - G3/8" F
Length: 20m
ZN.CC200B2A1Z
ZN.CC200B2A1Z
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature: -40°C +150°C
Colour : BLACK
Ends/Size: G3/8" M - G3/8" F
Length: 20m
ZN.CC200B3P3P
ZN.CC200B3P3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F - M22 ø14 F
Length: 20m
ZN.CC200B4D3P
ZN.CC200B4D3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F
Length: 20m
ZN.CC200B4D4D
ZN.CC200B4D4D
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F long
Length: 20m

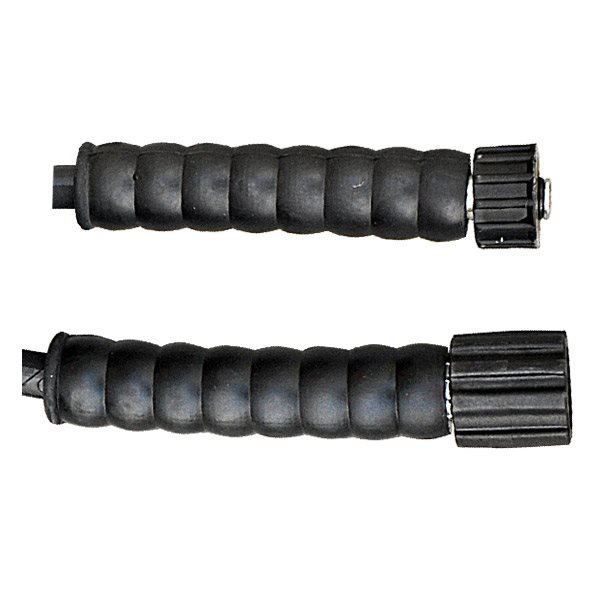

ZN.CC200B8Z3P
ZN.CC200B8Z3P
315bar, R1 5/16" - DN8 - High pressure hose with fittings and with bend restrictors: BLACK
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Ends/Size: M22 ø14 F long - M22 ø14 F swivel
Length: 20m
ZN.CC500
ZN.CC500
315bar, R1 5/16" - DN8 - High pressure hose: BLACK
Ideal for producing h.p. hoses for professional cold and hot water high pressure washers
Technical data
Hose : 5/16"
Braids : R1
Inside Ø : 7,9mm
Outside Ø : 15,0mm
Working pressure : 315bar
Burst pressure : 1260bar
Temperature : -40°C +150°C
Colour : BLACK
Length: 50m
ZX1716-38
ZX.1716-38
Crimp fitting with eyelet, for hose 5/16” - DN8 complete with perforated socket screw and washers G3/8” M. Made of galvanised steel



ZX3P
ZX.3P
Crimp fitting M22x1,5 F ø14 BLACK ring nut
ZX3R
ZX.3R
Crimp fitting M22x1,5 F ø14 90° BLACK ring nut
ZX4D
ZX.4D
Crimp fitting M22x1,5 F ø14 BLACK "LONG" ring nut
ZX4G
ZX.4G
Crimp fitting M21x1,5 F ø14 BLUE ring nut
ZX.5Q
ZX.5Q
Crimp fitting R1 ø10mm type K with bushing
ZX.5T
ZX.5T
Crimp fitting R1 ø11 type K swivel AISI 316 STAINLESS STEEL with bushing
ZX.8A
ZX.8A
Crimp fitting R1 ø11 type K swivel with bushing
The winning solution to manufacture and repair all kinds of pressure washers
IBG_Club-dei-riparatori_Immagine-Banner(0)
