Club dei Riparatori / Cannon lance
products

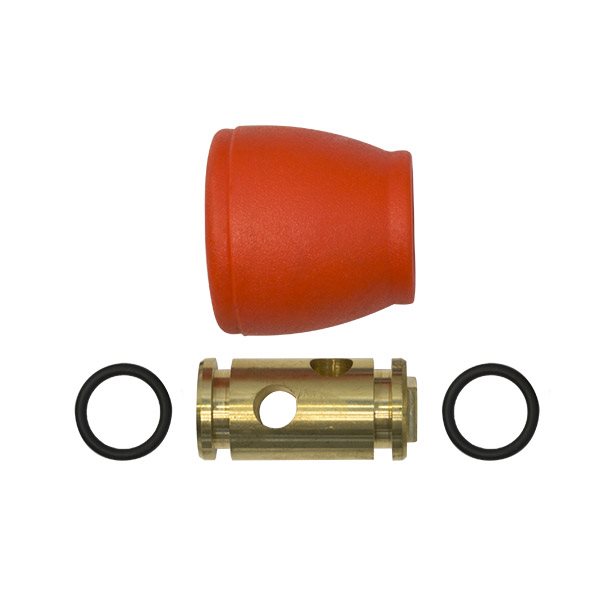

CDR.1750-SP
CDR.1750-SP
Service kit for cannon lance CDR.1750
Technical data
Quantity: 1x4
CDR.1751-10
CDR.1751-10
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Nozzle hole : ø1,0mm
Pressure 80bar: 5,7l/min
Pressure 100bar: 6,6l/min
Pressure 120bar: 7l/min
Pressure 150bar: 7,8l/min
Pressure 200bar: 9l/min
CDR.1751-12
CDR.1751-12
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Pressure 80bar: 7,7l/min
Pressure 120bar: 9,5l/min
Nozzle hole: ø1,2mm
Pressure 150bar: 10,5l/min
Pressure 200bar: 12,3l/min
Pressure 100bar: 8,7l/min
CDR.1751-15
CDR.1751-15
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Nozzle hole: ø15mm
Pressure 80bar: 10,1l/min
Pressure 100bar: 11,5l/min
Pressure 120bar: 12,6l/min
Pressure 150bar: 14l/min
Pressure 200bar: 16,5l/min

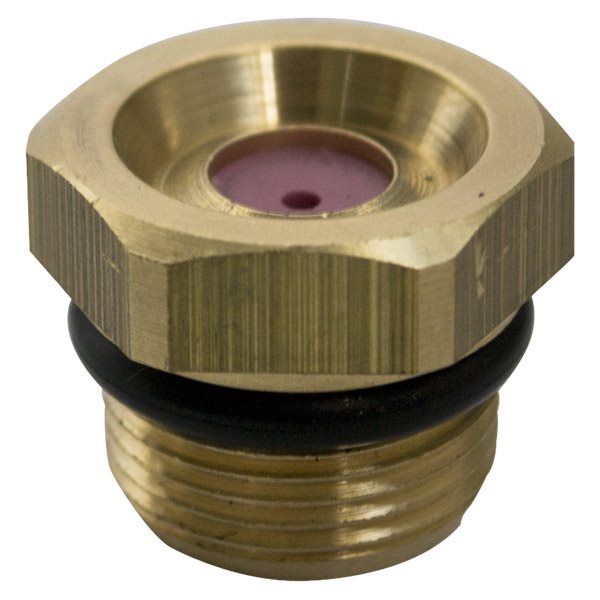

CDR.1751-18
CDR.1751-18
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Nozzle hole: ø1,8mm
Pressure 80bar: 13,8l/min
Pressure 100bar: 15,5l/min
Pressure 120bar: 16,8l/min
Pressure 150bar: 19l/min
Pressure 200bar: 21,7l/min
CDR.1751-20
CDR.1751-20
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Nozzle hole: ø2,0mm
Pressure 80bar: 17l/min
Pressure 100bar: 18,5l/min
Pressure 120bar: 20,5l/min
Pressure 150bar: 22,5l/min
Pressure 200bar: 26l/min
CDR.1751-23
CDR.1751-23
Cone nozzle with O-ring for cannon lance, M15x1 M.
Brass body, ceramic insert. The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
Technical data
Nozzle hole: 2,3mm
Pressure 80bar: 23l/min
Pressure 100ba: 26l/min
Pressure 120bar: 28l/min
Pressure 150bar: 31,5l/min
Pressure 200bar: 36,2l/min

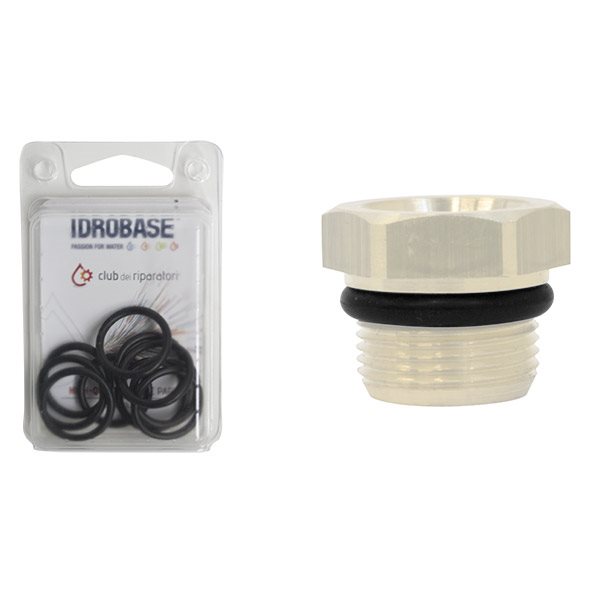

CDR.1751-OR
CDR.1751-OR
Set of 10 O-rings for cannon lance nozzle
Technical data
Quantity: 1x10
ZX.1614-10
ZX.1614-10
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø1,0mm
ZX.1614-12
ZX.1614-12
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø1,2mm
ZX.1614-15
ZX.1614-15
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø1,5mm
ZX.1614-18
ZX.1614-18
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø1,8mm
ZX.1614-20
ZX.1614-20
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø2,0mm
ZX.1614-23
ZX.1614-23
Cannon lance with nozzle, 520mm, inlet G1/4" M, 250bar, 100°C
Technical data
Nozzle hole : ø2,3mm
