CdR 80 moulded handle, inlet M22x1,5F swivel
You are in
Products and Applications
Club dei Riparatori
Accessories for washers
Lances
CdR 80 moulded handle, inlet M22x1,5F swivel
CdR 80 moulded handle, inlet M22x1,5F swivel
See catalogue
Share
Ask for further information
products
CDR.7023
Nozzle tip retainer fitting Kärcher, M 18x1,5 F
ZX.0154
Set of O-Rings, for brass nozzle holder (code CDR.7024)
Technical data
Quantity:
1x100
ZX.7205
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max pressure :
220bar
Inlet:
M22X1.5 F swivel
Length:
500mm
Outlet:
1/4" NPT-F

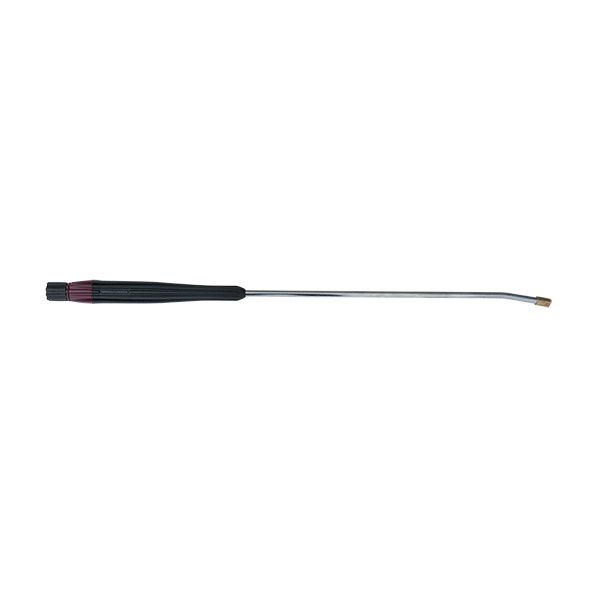

ZX.7205-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
500mm
Outlet:
M18x1,5 M
ZX.7207
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
700mm
Outlet:
1/4" NPT-F
ZX.7207-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
700mm
Outlet:
M18x1,5 M
ZX.7209
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
900mm
Outlet:
1/4" NPT-F
ZX.7209-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
900mm
Outlet:
M18x1,5 M
ZX.7212
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Inlet :
M22X1.5 F swivel
Outlet :
1/4" NPT-F
Length:
1200mm
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
ZX.7212-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1200mm
Outlet:
M18x1,5 M
ZX.7215
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1500mm
Outlet:
1/4" NPT-F
ZX.7215-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1500mm
Outlet:
M18x1,5 M
ZX.7217
CdR 80 lance, moulded handle, with bend - outlet 1/4" NPT-F
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1700mm
Outlet:
1/4" NPT-F
ZX.7217-M18
CdR 80 lance, moulded handle, with bend - outlet M18x1,5 M + O-Ring
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1700mm
Outlet:
M18x1,5 M
ZX.C12S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1200mm
Outlet:
G1/4" M
ZX.C15S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1500mm
Outlet:
G1/4" M
ZX.C17S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
1700mm
Outlet:
G1/4" M
ZX.C5S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
500mm
Outlet:
G1/4" M
ZX.C7S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
700mm
Outlet:
G1/4" M
ZX.C9S
CdR 80 lance, moulded handle, with bend - outlet G1/4" M
Made of chromed steel
Technical data
Max pressure :
220bar
Max flow rate :
40l/min
Max temperature :
150°C
Inlet:
M22X1.5 F swivel
Length:
900mm
Outlet:
G1/4" M
