Club del Misting / Accessories
IBG_Idrotech_Accessori-misting_Ugello_nebulizzante_accessori

Accessories

See catalogue

products
mt-htool-b-600x600px_
MT.HTOOL-B
Tool for fixing fog nozzles
in nickel-plated brass
(nozzle casing side)




CDR0586
CDR.0586
Thread Locker 10ml with dispenser
IT0805
IT.0805
Extensions in nickel-plated copper with thread 10/24M - 10/24F
Technical data
Length: 5cm
IT0810
IT.0810
Extensions in nickel-plated copper with thread 10/24M - 10/24F
Technical data
Length: 10cm
IT0815
IT.0815
Extensions in nickel-plated copper with thread 10/24M - 10/24F
Technical data
Length: 15cm
IT0820
IT.0820
Extensions in nickel-plated copper with thread 10/24M - 10/24F
Technical data
Length: 20cm
IT0830
IT.0830
Extensions in nickel-plated copper with thread 10/24M - 10/24F
Technical data
Length: 30cm
IT1046
IT.1046
Nickel-plated brass  adapter for 5 nozzles, in G1/4" F out 5x10/24" F
MTCV1010C
MT.CV1010C
Nickel-plated brass adapter, 9,6mm, threaded 10/24UNC/2A M-F. In packs of 100 pcs
MTCV1010DSS
MT.CV1010DSS
Stainless steel AISI 304 adapter, 9mm, thread 10/24UNC/2A M-F. In packs of 100 pcs
MTCV1010LC
MT.CV1010LC
Nickel-plated brass adapter, 14,6mm, threaded 10/24UNC/2A M-F. In packs of 100 pcs
MTCV1012DSS
MT.CV1012DSS
Stainless steel adapter for fog nozzle 10/24F-12/24M. In packs of 100 pcs
MTCV1018
MT.CV1018
Nickel-plated brass adapter, threaded, inlet 10/24UNC/2A F outlet 1/8" M. In packs of 100 pcs
MTCV1018SS
MT.CV1018SS
Stainless steel adapter AISI 304, threaded, inlet 10/24UNC/2A F outlet 1/8" M. In packs of 100 pcs
MTCV1210DSS
MT.CV1210DSS
Stainless steel adapter for fog nozzle 12/24F-10/24M. In packs of 100 pcs
MTDV2012
MT.DV2012
Brass end of line discharge valve, G1/2" F
MTHTOOL
MT.HTOOL
Hand tool to fix fog nozzles
MTNP10(0)
MT.NP10
Nickel-plated brass cap thread 10/24UNC/2A
MTNP10SS
MT.NP10SS
Stainless steel AISI 304 cap thread 10/24UNC/2A. In packs of 100 pcs
MTOR32
MT.OR32
O-Ring (white) for fog head nozzle threaded 10/32UNC/2A (code MT.CV1032)
MTOR35
MT.OR35
O-Ring (black) for fog head nozzle threaded 10/24UNC/2A. In packs of 100 pcs
MTOR40
MT.OR40
O-Ring (black) for fog head nozzle threaded 10/24UNC/2A. In packs of 100 pcs
MTOR47
MT.OR47
O-Ring (black) for fog head nozzle threaded 12/24UNC/2A. In packs of 100 pcs
MTSG10SS
MT.SG10SS
Stainless steel AISI 304 collar to weld, for pipe ø12mm threaded 10/24UNC/2A. In packs of 100 pcs
MTSR-RB1
MT.SR-RB1
Anti-drip check valve ø0,55 for fog nozzles, complete with stainless steel spring and rubber ball.  Recommended for pressure
over 60bar. In packs of 100 pcs.
MTSR-RB35
MT.SR-RB35
Anti-drip check valve ø0,35 for fog nozzles, complete with stainless steel spring. Recommended for pressure up to 20bar. In packs of 100 pcs.
MTSR-RB4
MT.SR-RB4
Anti-drip check valve ø0,40 for fog nozzles, complete with stainless steel spring and rubber ball. Recommended for pressure2 0-60bar. In packs of 100 pcs.
MTWF25
MT.WF25
25 microns filter, for fog nozzles with anti-drip check valve threaded 10/24UNC/2A. In packs of 100 pcs
MTWF60
MT.WF60
60 microns filter, for fog nozzles with anti-drip check valve threaded 1/8" M. In packs of 100 pcs

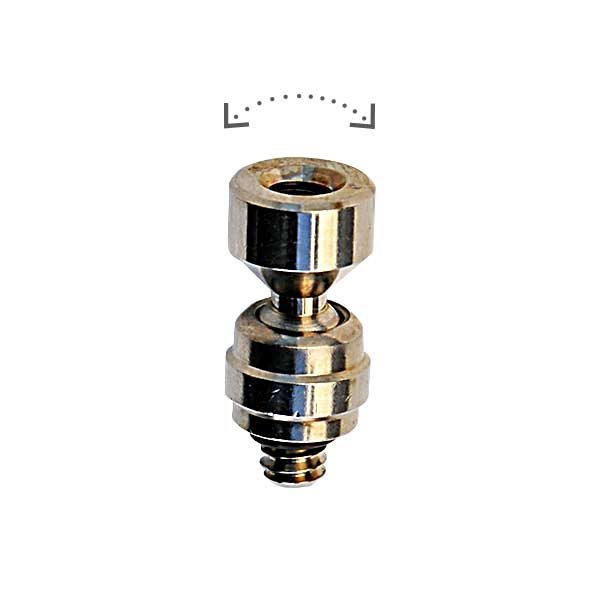

PCKXC-01
PC.KXC-01
Nickel-plated brass adapter, swivel type, threaded 10/24UNC/2A M-F. In packs of 10 pcs
PCKXC-01SS
PC.KXC-01SS
Stainless steel adapter, swivel type, threaded 10/24UNC/2A M-F stainless steel AISI 316. In packs of 10 pcs
PCNL360
PC.NL360
Nickel-plated brass adapter, 4 holes, threaded, inlet 10/24UNC/2A M outlet 4x10/24UNC/2A F. In packs of 10 pcs
PCNL360SS
PC.NL360SS
Stainless steel adapter, 4 holes, threaded, inlet 10/24UNC/2A M outlet 4x10/24UNC/2AF stainless steel AISI 316. In packs of 10 pcs
