Club del Misting / High pressure
products
CDR.0946
CDR.0946
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" М - G3/8" F
Length: 33mm
CDR.0947
CDR.0947
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" М - G1/2" F
Length: 36mm
CDR.0948
CDR.0948
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" М - G1/2" М
Length: 38mm
CDR.0949
CDR.0949
H.p. long extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G3/4" F
Length: 44mm
CDR.0950
CDR.0950
H.p. long extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G3/4" F
Length: 46mm
CDR.7002
CDR.7002
Hose-barb, made of brass, G1/8" M - ø9mm
CDR.7003
CDR.7003
Hose-barb, made of brass, G1/4" M - ø9mm
CDR.GF4M3
CDR.GF4M3
Brass h.p. elbow, G3/8" M-G1/4" F, pressure MAX 300bar, temperature 5-150°C
Suitable for connecting the pressure gauge to the pump
CDR.GFM2
CDR.GFM2
Brass h.p. elbow, G1/2" M-F, pressure MAX 300bar, temperature 5-150°C
CDR.GFM3
CDR.GFM3
Brass h.p. elbow, G3/8" M-F, pressure MAX 300bar, temperature 5-150°C
CDR.TFFF2
CDR.TFFF2
Brass h.p. "T" connector, G1/2" F-F-F, pressure MAX 300bar, temperature 5-150°C
CDR.TFFF3
CDR.TFFF3
H.p. "T" connector, G3/8" F-F-F, pressure MAX 300bar, temperature 5-150°C
CDR.TFFM3
CDR.TFFM3
Brass h.p. "T" connector, G3/8" F-F-M, pressure MAX 300bar, temperature 5-150°C
S.L103510SA
S.L103510SA
Pressure accumulator 0.35L, 210bar, inlet G3/8" F, -20 +80°C
Vertical or horizontal mounting. Gas prefilled (nitrogen)
S.LI0110SA
S.LI0110SA
Pressure accumulator 0.1L, 210bar, inlet G3/8" F, -20 +80°C
Vertical or horizontal mounting. Gas prefilled (nitrogen)
VN.C35MF12
VN.C35MF12
H.p. elbows, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G1/2" F
VN.C35MF14
VN.C35MF14
H.p. elbows, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/4" F
VN.C35MF38
VN.C35MF38
H.p. elbows, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G3/8" F
VN.N112
VN.N112
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G1/2" M
VN.N114
VN.N114
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/4" M
VN.N118
VN.N118
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/8" M - G1/8" M
VN.N134
VN.N134
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" M - G3/4" M
VN.N138
VN.N138
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G3/8" M
VN.N21214
VN.N21214
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/2" M
VN.N21238
VN.N21238
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G1/2" M
VN.N21418
VN.N21418
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/8" M - G1/4" M
VN.N23412
VN.N23412
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G3/4" M
VN.N23814
VN.N23814
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G3/8" M
VN.N6NGFF12
VN.N6NGFF12
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" F - G1/2" F
VN.N6NGFF14
VN.N6NGFF14
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" F - G1/4" F
VN.N6NGFF34
VN.N6NGFF34
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" F - G3/4" F
VN.N6NGFF38
VN.N6NGFF38
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" F - G3/8" F
VN.N6NGMF12
VN.N6NGMF12
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G1/2" F

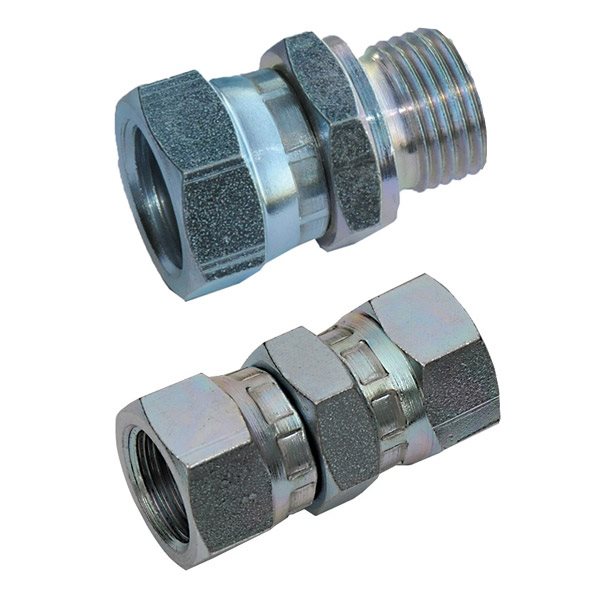

VN.N6NGMF14
VN.N6NGMF14
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/4" F
VN.N6NGMF34
VN.N6NGMF34
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" M - G3/4" F
VN.N6NGMF38
VN.N6NGMF38
H.p. swivel nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G3/8" F
VN.P24C14
VN.P24C14
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" М - G1/4" F
Length: 31mm
VN.P24C38
VN.P24C38
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" М - G3/8" F
Length: 35mm

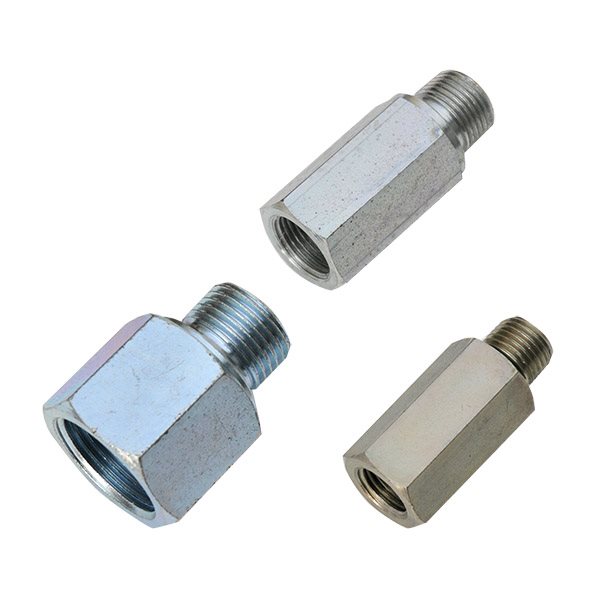

VN.P2614
VN.P2614
H.p. long extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/4" F
Length: 46mm
VN.P2638
VN.P2638
H.p. long extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G3/8" F
Length: 46mm
VN.P26F12
VN.P26F12
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" F - G1/2" F
Length: 35mm
VN.P26F14
VN.P26F14
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" F - G1/4" F
Length: 25mm
VN.P26F38
VN.P26F38
H.p. short extension, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" F - G3/8" F
Length: 30mm
VN.T1412
VN.T1412
H.p. caps, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Outlet: G1/2" M
VN.T1414
VN.T1414
H.p. caps, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Outlet: G1/4" M
VN.T1418
VN.T1418
H.p. caps, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Outlet: G1/8" M
VN.T1434
VN.T1434
H.p. caps, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Outlet: G3/4" M
VN.T1438
VN.T1438
H.p. caps, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Outlet: G3/8" M
VN.T23R1214
VN.T23R1214
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G1/4" F
VN.T23R1238
VN.T23R1238
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/2" M - G3/8" F

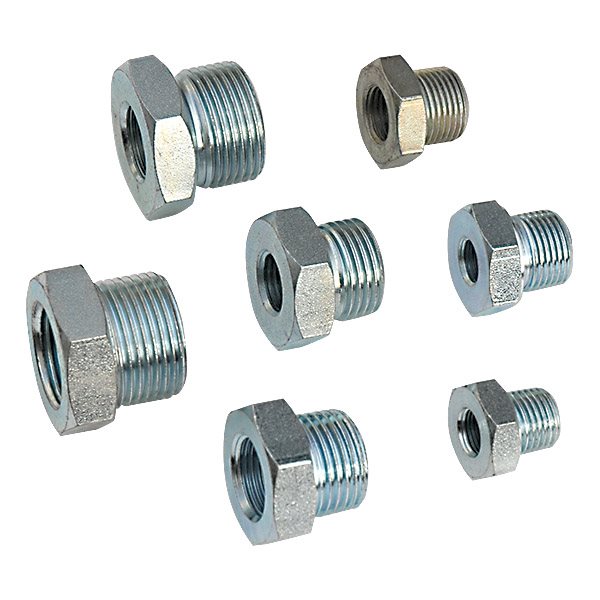

VN.T23R1418
VN.T23R1418
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G1/4" M - G1/8" F
VN.T23R3412
VN.T23R3412
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" M - G1/2" F
VN.T23R3414
VN.T23R3414
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" M - G1/4" F
VN.T23R3438
VN.T23R3438
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/4" M - G3/8" F
VN.T23R3814
VN.T23R3814
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G1/4" F
VN.T23R3818
VN.T23R3818
H.p. conical nipples, made of galvanised steel, tapered 60°. 250bar, 40l/min, 150°C
Technical data
Ends/Size: G3/8" M - G1/8" F
The winning solution to repair all kinds of misting system
