Gigante 15HP
Gigante 15HP

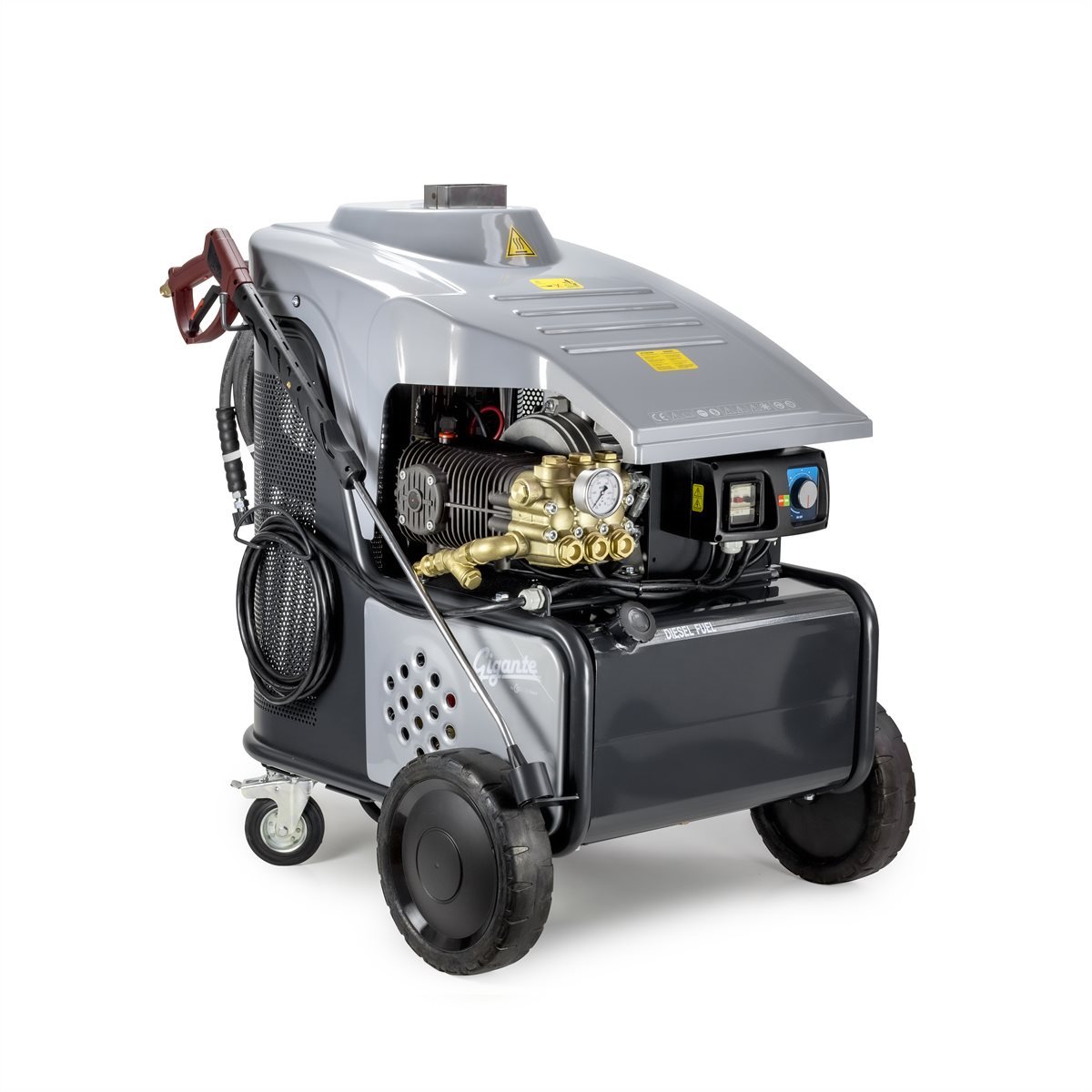

Gigante 15hp

The ultimate h.p. washer. Powerful, reliable, as required by those who use h.p. washers as a daily work tool and in the most demanding conditions to achieve the maximum cleaning in the least time and in complete safety. Gigante, the ultimate h.p. washer.

highlights
HOUR METER
HOUR METER
To programme preventive service= high pressure washer always at the top
INDUSTRIAL PUMP
INDUSTRIAL PUMP
1450g/min= continuous use
STAINLESS STEEL
STAINLESS STEEL
AISI 430 stainless steel industrial heater with liner and ventilation. Water inlet tank in AISI 304 stainless steel
ELECTRICAL PANEL
ELECTRICAL PANEL
Two practical controls: simple, safe and intuitive
Technical data
CODE Model Version Pressure Flow rate Rpm Temperature Power Weight
ZX.2218 1450 170/33 By-pass 170bar 33l/min 1450 45 - 70°C * 15hp/11kW (3x400V-50Hz) 225kg
ZX.2219 1450 300/18 By-pass 300bar 18l/min 1450 45 - 80°C * 15hp/11kW (3x400V-50Hz) 235kg
 *Steam stage: 140°C

Data, tables and pictures are purely indicative. Any changes can be made by the manufacturer without prior notice.
Technical data

Tubular frame set made of stove-enameled steel
Cover made of thermoformed polystyrene
Industrial pump 1450Rpm, with crankshaft, brass head, 3 ceramic plungers
High efficiency electric motor 1450Rpm 50Hz
Electrical panel with magneto-thermal switch, hour meter and 5m of neoprene electric cable
Brass inlet water filter
Fuel filter with water drain valve
Fuel tank 20
Heater with cover, stainless steel inner jacket and combustion chamber
Dimensions WxLxH: 790 x 900 x 1025mm

Standard equipment
H.p. hose 10m, with screw quick couplings
Industrial spray gun
Professional lance 900mm (800mm straight SS for ZX.2219)
H.p. nozzle 25° high resolution
optionals / ZX.2218
CDR.7062
CDR.7062
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
ZX15W40-1
ZX.15W40-1
Mineral oil SAE 15W 40, Ideal for high pressure pumps, 1L
CDR.1593-120
CDR.1593-120
Professional rotating nozzle, inlet G1/4" F, max pressure 400bar, max temperature 90°C
ZX.7109
ZX.7109
CdR 55 lance, vented grip, with bend - outlet 1/4" NPT-F Made of chromed steel
optional idrobase
ZN.EC100B4N4N
H.p. hose R2 3/8" 10m, M24x1.5 F-F
ZX.7110
ZX.7110
CdR 55 lance, vented grip, with bend - outlet 1/4" NPT-F Made of chromed steel
optional idrobase
ZN.EC200B4N4N
H.p. hose R2 3/8" 20m, M24x1.5 F-F
CDR.1538-SP
CDR.1538-SP
Service kit VHP 39
