Idrobase / Principessa Plus
idrobase_logo_principessa-plus(0)
principessa-plus
principessa-plus

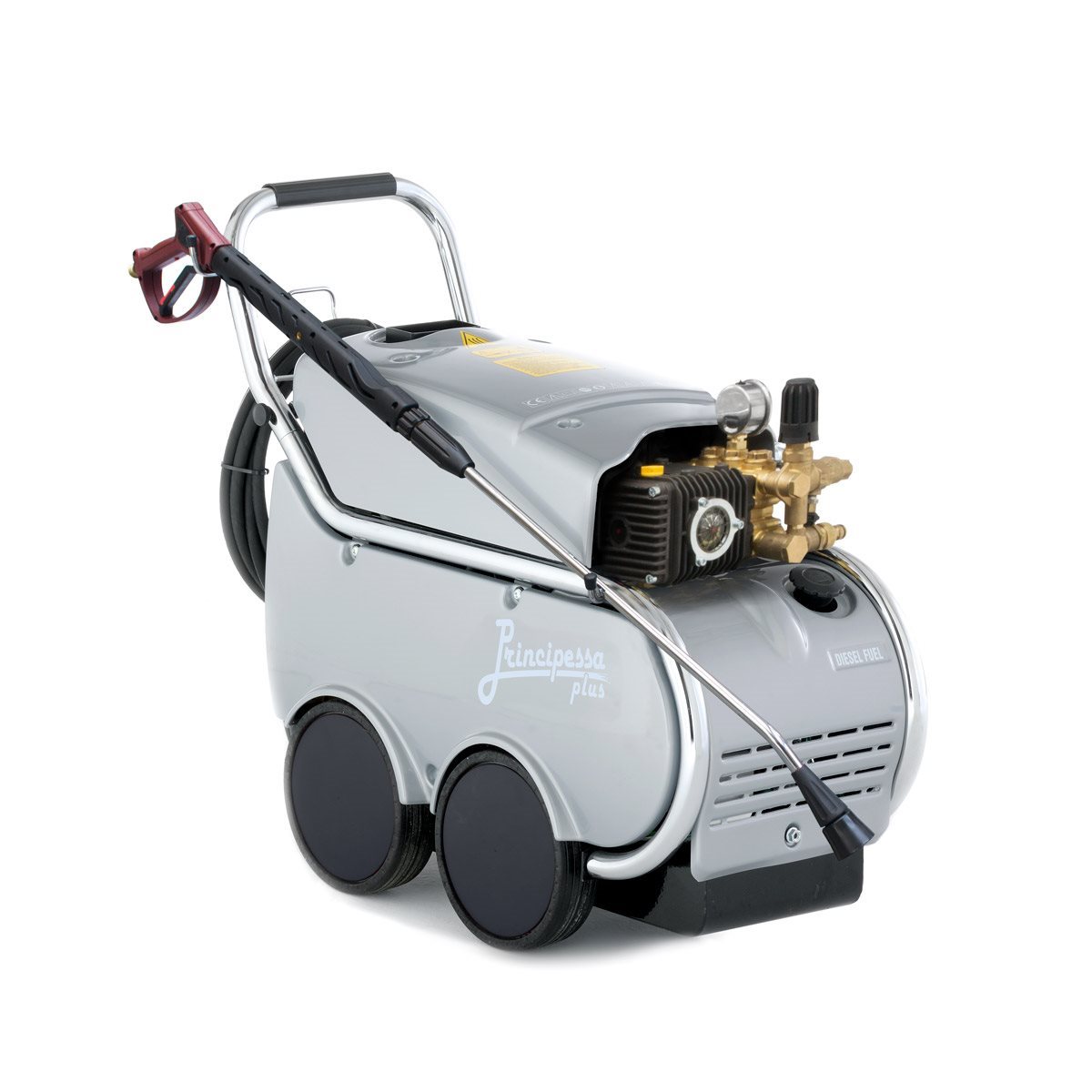

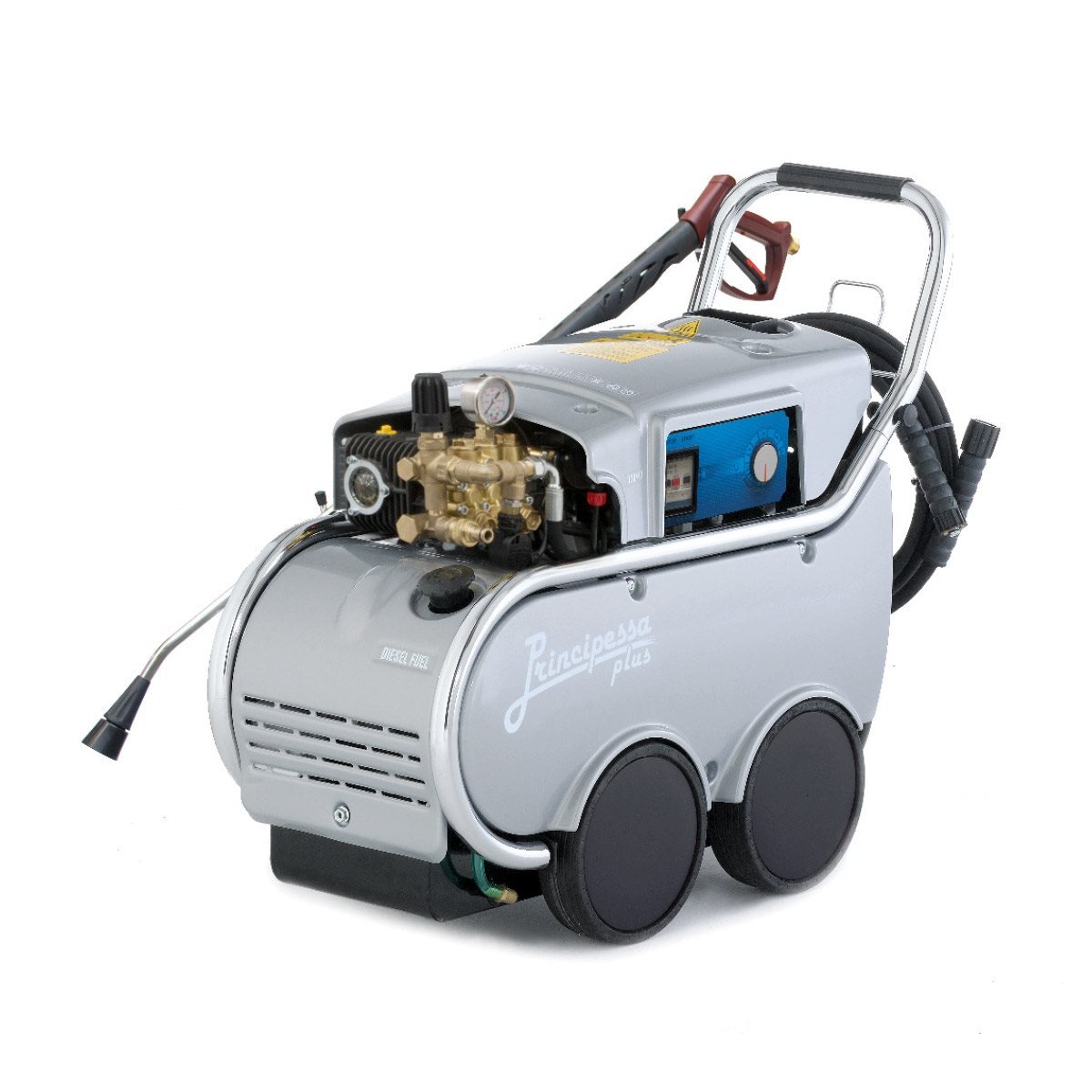

Principessa Plus

The specialised h.p. washer. Principessa Plus is the answer to the needs of professional pressure washing that is easy and effortless. Particular attention given to the safety profile. The Principess Plus h.p. washer can be used up to 4 hours a day.

highlights
Idrobase-Idropulitrici-professionali-Principessa-Plus_hi-li1
TUBULAR FRAME SET
Sturdy and durable in chromed steel
Idrobase-Idropulitrici-professionali-Principessa-Plus_hi-li2
PROFESSIONAL PUMP
With camshaft and ceramic plungers
Idrobase-Idropulitrici-professionali-Principessa-Plus_hi-li3(0)
PROFESSIONAL BURNER
Ventilation independent from pump unit
Idrobase-Idropulitrici-professionali-Principessa-Plus_hi-li4
COMFORT LINE SWIVEL ACCESSORIES
When working helps well-being
Technical data
CODE Preventive maintenance 1000 hrs Preventive maintenance 500 hrs Model Version Pressure Flow rate Rpm Temperature Power Weight
ZX.2172-TS ZX.100IBG14 ZX.50IBG14 1450 140/8 TS Total Stop 140bar 8l/min 1450 45 - 90°C * 3,0hp/2,2 (1x230V-50Hz) 94kg
ZX.2176-TS ZX.100IBG02 ZX.50IBG02 1450 170/11 TS Total Stop 170bar 11l/min 1450 45 - 70°C * 5.5hp/4,0kW (3x400V-50Hz) 94kg
*Steam stage: 140°C

See also the corresponding cold water pressure washer: Coccinella 2.0

Data, tables and pictures are purely indicative. Any changes can be made by the manufacturer without prior notice.

Technical data
Tubular frame set made of chromed steel
Pump with camshaft 1450Rpm 50Hz, brass head, 3 ceramic plungers
Electric motor 1450Rpm 50Hz, IP55 electric box with ON/OFF circuit breaker switch and 5m electric cable
Fuel tank 7L
Coil double spiral type ø17, length 21m
Dimensions WxLxH: 370 x 780 x 770mm
Standard equipment
H.p. hose 8m with screw quick couplings
Professional spray gun w/extension
Lance extension 580m
H.p. nozzle 25° high resolution
optionals / ZX.2172-TS
CDR.7062
CDR.7062
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
ZX15W40-1
ZX.15W40-1
Mineral oil SAE 15W 40, Ideal for high pressure pumps, 1L
CDR0466
CDR.0466
Service kit VB 56
ZN.AC100X2P2P
ZN.AC100X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK
ZN.AC200X2P2P
ZN.AC200X2P2P
210bar, R1 1/4" - DN6 - High pressure hose with fittings and without bend restrictors: BLACK

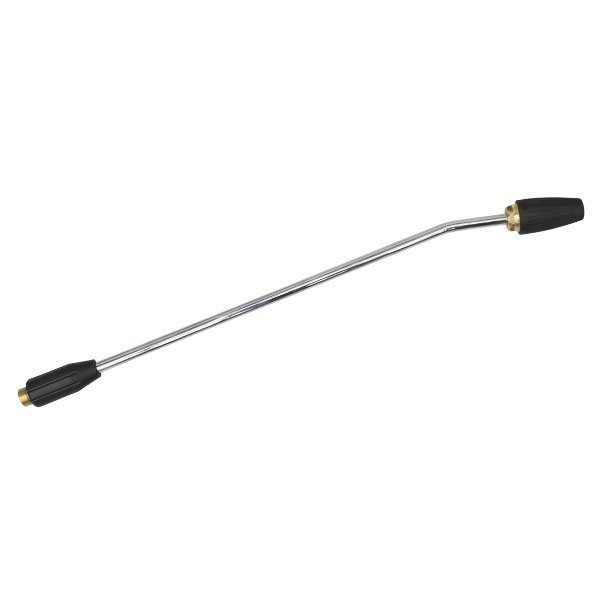

ZY025-T6M
ZY.025-T6M

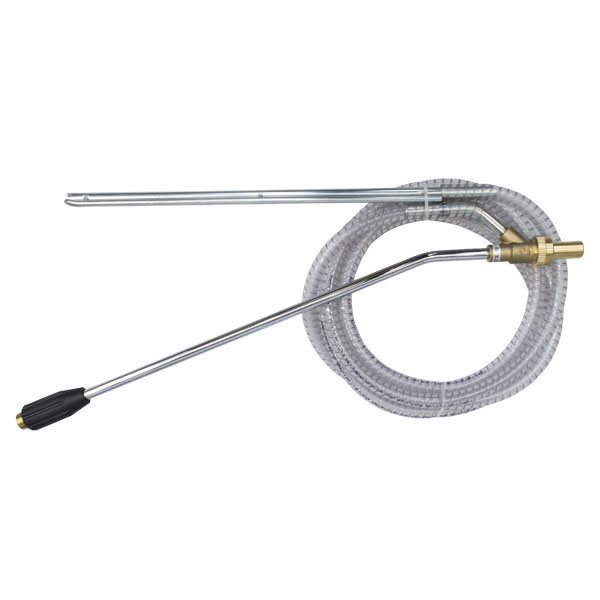

ZS030-T6M_terminale_con_testina_idrosabbiante
ZS.030-T6M

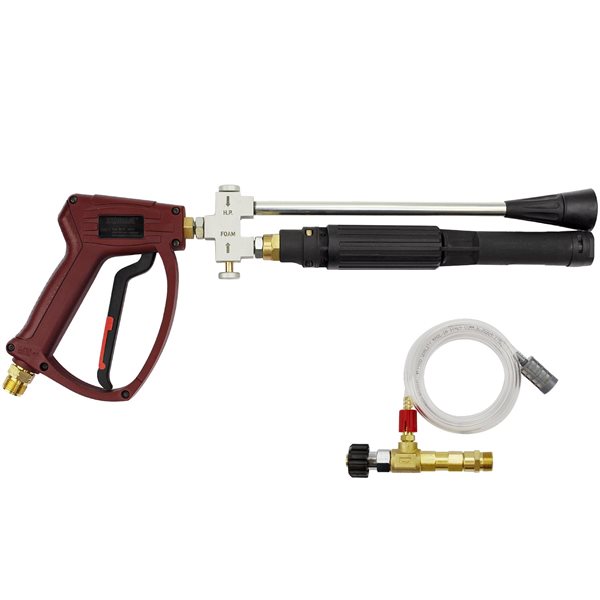

Kit Lancia Doppia Lunga con iniettore0
ZL.137-F5Z
ZL1X865L Lancia Doppia Piuma_600x600
ZL.1X865L
