ADI Blu

INFLATABLE SYSTEM FOR PEOPLE SANITITATION

How the system works
When the person passes by, the system will be activated via the foot control(8).

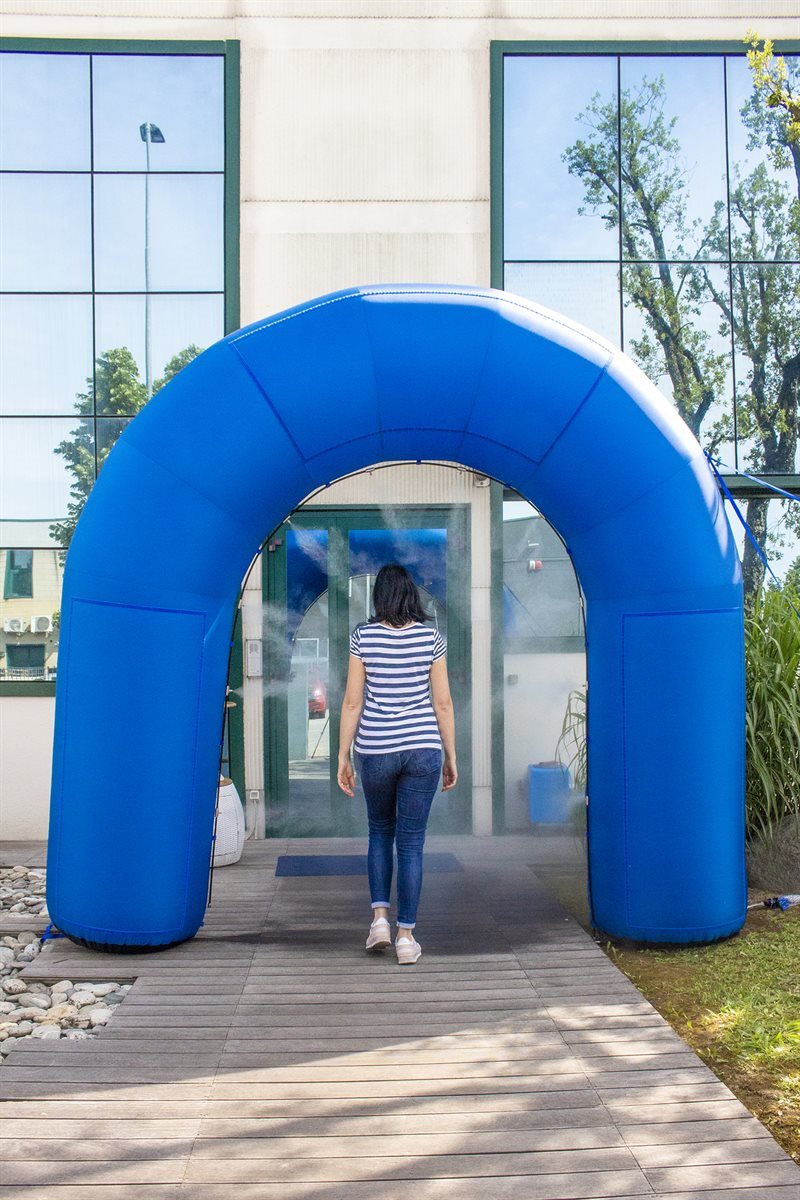

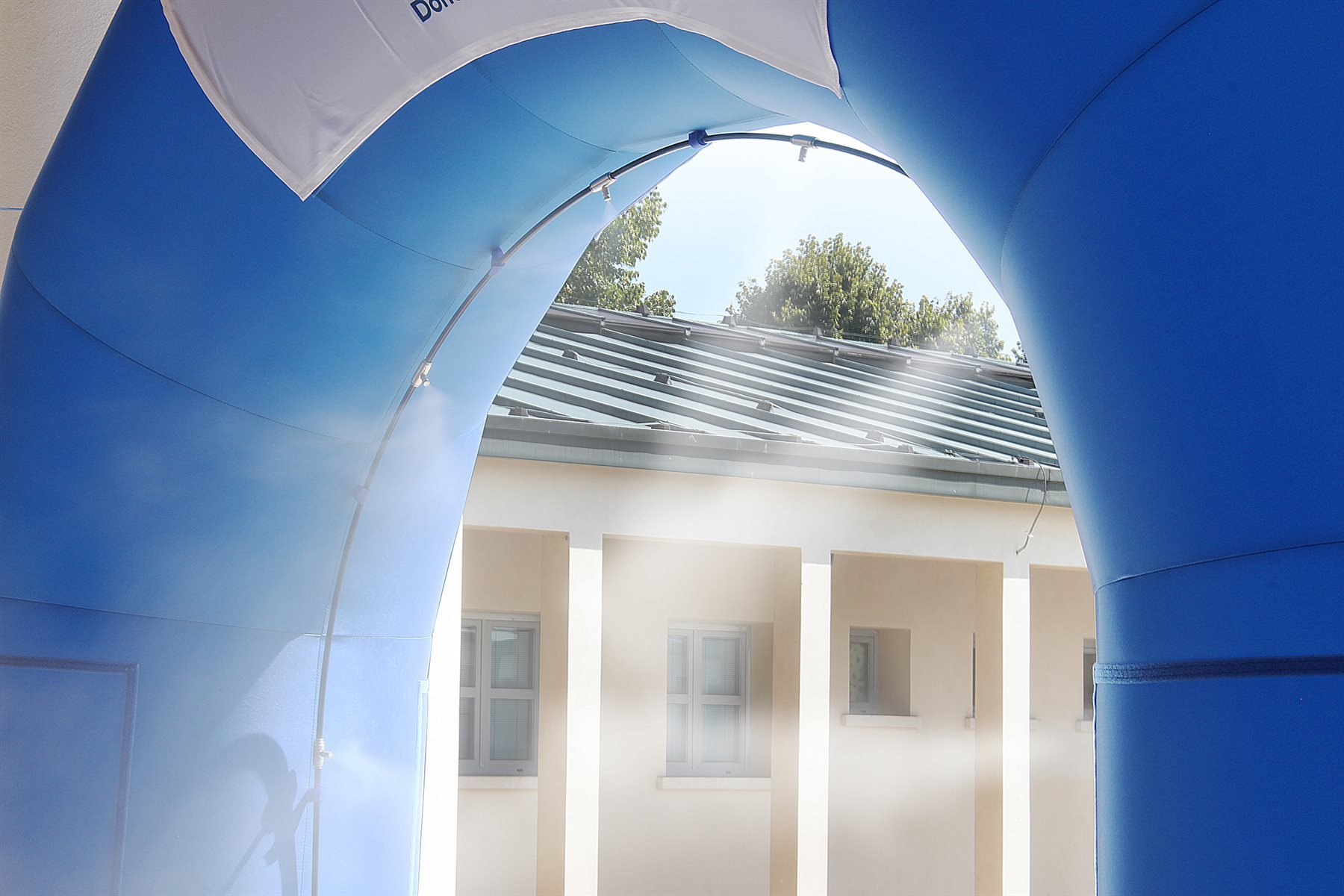

The person who passes through the arch is affected by the complete nebulization without being wet.

highlights

Technical data

CODE	Modello	N° ugelli	Pressione	Portata	Dimensione goccia	Azionamenti serbatoio 50L	Potenza	Dimensioni	Peso

ZX.2149-BL	ADI BLU	10	60bar	0,7l/min	10mcr	~920	200W (220V-50Hz)	(L)3550x800x(H)3150; (L1)9550x800x(H1)2350	35kg

WARNING

All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.
For all the specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.
The use of the Adi with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical data

- 10 nozzles
- 450 drives/ 50L tank
- 60bars presssure

Standard equipment

the kit includes:

- inflatable arch

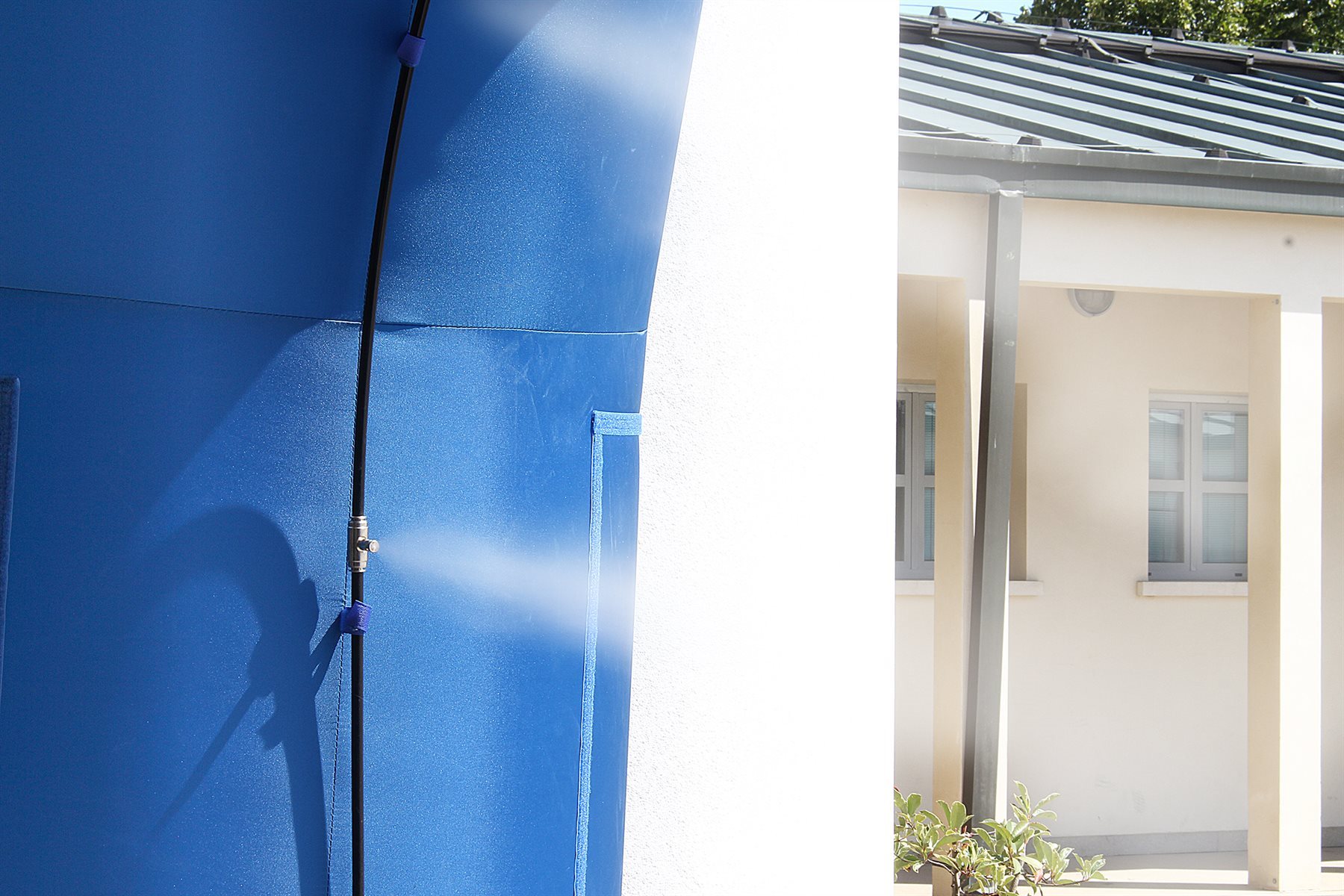

- polyamide pipe kit (PA 125r), diameter ø9,6mm, rolls of 3m, black, with no.10 AISI 303nozzles + anti-drip valve, 0,20mm hole.
- mono-phase electro pump, 60 bar, 2 plungers, 0,71/min.
- electric control l system with operating time programmer.
- liquid suction kit from the tank, with float valve for the automatic stop.
- high-density, 50L, Polyethylene tank. Dimensions LxWxH: 41x30x45
- h.p polyamide pipe ø9,6mm, rolls of 25m black
- foot control: plastic platform for the connection on the ground of the 2 semi arches.

optionals / ZX.2149-BL

CDR.2023-25

Idro Safe - 25L. Disinfectant and antibacterial product of medical surgical device grade
