Fog 70 Touch

Fog module 70bar industrial from 13 to 560 nozzles 3x400V-50Hz


• Highly compact
• Possibility of installing accessories directly on the module
• Control panel with PLC and touchscreen
• Possibility of remote management
highlights
fog70-touch-highlights-245x245px-01
fog70-touch-highlights-245x245px-02
Control panel with PLC and touchscreen to manage the module, available in 7 languages
fog70-touch-highlights-245x245px-03
OPTIONAL
Remote control: possibility to interact with the system from a remote terminal
Technical data
CODE Model Pressure Flow rate N. nozzles* Power 3x400V-50Hz Weight Preventive maintenance 750 hrs (standard) Preventive maintenance 1500 hrs (optional)
ZX.F70T01 FOG 70 TOUCH-1 80bar 1l/min 13* 1,5Kw 58kg ZX.75IP01 ZX.150IP01
ZX.F70T02 FOG 70 TOUCH-2 80bar 2l/min 27* 1,5Kw 58kg ZX.75IBG01 ZX.150IBG01
ZX.F70T04 FOG 70 TOUCH-4 80bar 4l/min 53* 1,5Kw 58kg ZX.75IBG10 ZX.150IBG10
ZX.F70T06 FOG 70 TOUCH-6,5 80bar 6,5l/min 87* 1,5Kw 58kg ZX.75IBG10 ZX.150IBG10
ZX.F70T08 FOG 70 TOUCH-8 80bar 8l/min 107* 1,5Kw 58kg ZX.75IBG10 ZX.150IBG10
ZX.F70T11 FOG 70 TOUCH11 70bar 11l/min 147* 1,5Kw 58kg ZX.75IBG02 ZX.150IBG02
ZX.F70T13 FOG 70 TOUCH-13 80bar 13l/min 173* 2,2 Kw 61kg ZX.75IBG02 ZX.150IBG02
ZX.F70T15 FOG 70 TOUCH-15 80bar 15l/min 200* 2,2 Kw 61kg ZX.75IBG08 ZX.150IBG08
ZX.F70T18 FOG 70 TOUCH-18 80bar 18l/min 240* 3 Kw 66kg ZX.75IBG04 ZX.150IBG04
ZX.F70T21 FOG 70 TOUCH-21 80bar 21l/min 280* 3 Kw 66kg ZX.75IBG13 ZX.150IBG13
ZX.F70T26 FOG 70 TOUCH-26 80bar 26l/min 347* 4Kw 80kg ZX.75IBG06 ZX.150IB06
ZX.F70T33 FOG 70 TOUCH-33 70bar 33l/min 440* 6,3Kw 98kg ZX.75IBG06 ZX.150IBG06
ZX.F70T42 FOG 70 TOUCH-42 70bar 42l/min 560* 6,3Kw 98kg ZX.75IBG07 ZX.150IBG07
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
Technical data

Frame made of painted steel
Professional pump, crankshaft, with brass head with 3 ceramic plungers
Electric motor 1450g/min, 3x400V-50Hz, S1
Unloader valve, in brass
Pressure gauge with glycerine in AISI 304 stainless steel
Solenoid valve l.p. water inlet 24V-50Hz
H.p. solenoid valve 24V-50Hz to discharge line pressure
H.p. switch for no water supply and pipe breaks
General thermal switch
3/4” M inlet
Outlet, 1/2” M
Control panel with: thermal switch, PLC and touchscreen to manage the module
Dimensions WxLxH: 780 x 450 x 500mm


It can be combined with Sani Fog fisso.

optionals / ZX.F70T01
ZX8074-R
ZX.8074-R
Water inlet kit 10" complete with pressure stabiliser and Dosatron 0,2 - 2% Complete with 1micron cartridge,wall fixing bracket and tightening spanner
ZX2322 Kit analisi durezza
ZX.2322
Water hardness analysis kit
ZX0905-10
ZX.0905-10
Water supply kit, 10m with screw quick couplings
ZX1277_Controllo-remoto-Ethernet
ZX.1277
Ethernet remote control kit for PLC
ZX1279_Controllo-remoto-WiFi
ZX.1279
Wi-Fi remote ZX.1279 control kit for PLC
ZX1260-24ACDC_Collettoreelettrovalvole(0)
ZX.1260-24DC
Manifold 4 outlet kit complete with 24V DC solenoid valves
ZX1260-24ACDC_Collettoreelettrovalvole
ZX.1260-24AC
Manifold 4 outlet kit complete with 24V AC solenoid valves
ZX1260-38_Collettore
ZX.1260-38
Manifold 4 outlet kit complete with ball valves
ZX8074-RC
ZX.8074-RC
10” water inlet kit + 0,2-2% dispenser and pressure stabilizer
ZX0303-UV-RC(2)
ZX.0303-PUVRC
20” water inlet kit + sterilizer UV and pressure stabilizer for hard water
ZX0303-UV-RC(1)
ZX.0302-PUVRC
10” water inlet kit + sterilizer UV and pressure stabilizer for hard water

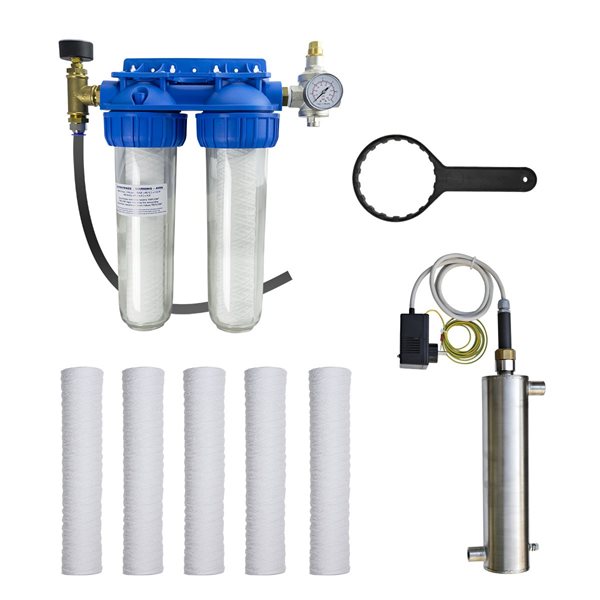

ZX0303-UV-RC(0)
ZX.0303-UV-RC
20” water inlet kit + sterilizer UV and pressure stabilizer (normal water)
ZX0302-UV-RC(0)
ZX.0302-UV-RC
10” water inlet kit + sterilizer UV and pressure stabilizer (normal water)
ZX0303-RC(1)
ZX.0303-RC-P
20” water inlet kit complete with pressure stabilizer for hard water
ZX0303-RC
ZX.0303-RC
20” water inlet kit complete with pressure stabilizer (normal water)
ZX0302-RC
ZX.0302-RC
10” water inlet kit complete with pressure stabilizer (normal water)
