Fog Multi Ambiente

Fog module with costant pressure and variable flow rate 230V-50Hz

The environment you seek. Air conditioning, humidifying, dust suppression, aromatisation, fog effects. Multi Ambient is both a revolutionary unit and also a system for multi-line system management, a significant leap forward in the quality of the civil and industrial sector.

highlights
Idrotech-Misting-industriale-Fog-Multi-Ambiente_hi-li1
Detail of the control panel, with cooling fans and connection to the remote control of Fog Multi Ambiente module
Idrotech-Misting-industriale-Fog-Multi-Ambiente_hi-li2
Detail of inlet and outlet water coupling on Fog Multi Ambiente module
Idrotech-Misting-industriale-Fog-Multi-Ambiente_hi-li3
Control unit for management of pause/work times and provision for signal reception at 4:20mA
Idrotech-Misting-industriale-Fog-Multi-Ambiente_hi-li4
Optional: with Idrobase inlet water kit (2-year warranty)
Technical data
CODE Model Nozzles min - max Pressure Flow rate min-max Power absorption Weight Preventive maintenance 750 hrs (standard) Preventive maintenance 1500 hrs (optional)
ZX.8109-T FOG 70 AMBIENTE-1 4- 13* 30-70bar 0,3 - 1l/min 1,5kW (1x230V-50Hz) 52kg ZX.75IP10 ZX.150IP01
ZX.8110-T FOG 70 AMBIENTE-2 8 - 26* 30-70bar 0,6 - 2 l/min 1,5kW (1x230V-50Hz) 52kg ZX.75IBG10 ZX.150IBG10
ZX.8111-T FOG 70 AMBIENTE-4 14 - 50* 30-70bar 1,1 - 3,8l/min 1,5kW (1x230V-50Hz) 52kg ZX.75IBG10 ZX.150IBG10
ZX.8112-T FOG 70 AMBIENTE-6 22 - 74* 30-70bar 1,7 - 5,6l/min 2,2kW (1x230V-50Hz) 66kg ZX.75IBG10 ZX.150IBG10
ZX.8113-T FOG 70 AMBIENTE-8 32 - 106* 30-70bar 2,4 - 8l/min 2,2kW (1x230V-50Hz) 68kg ZX.75IBG10 ZX.150IBG10
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
**The flow rate varies according to the variations in frequency set on the inverter (max flow rate at 50Hz)
Technical data

Frame made of painted steel
Professional pump with brass head with 3 ceramic plungers
Electric motor 1450g/min 3X230V-50Hz
Unloader valve
L.p. solenoid valve inlet water 24V-50Hz, brass body
H.p. solenoid valve 24V-50Hz for line pressure discharge, brass body
Pressure transducer 4:20 mA (0-100bar)
Electrical panel complete with inverter for variation of motor frequency, 230-24-12V transformer for management of solenoid valves and control unit
Control unit for management of pause/work times and provision for signal reception at 4:20mA
Dimensions WxLxH: 560 x 256 x 400mm

optionals / ZX.8109-T
ZX1132
ZX.1132

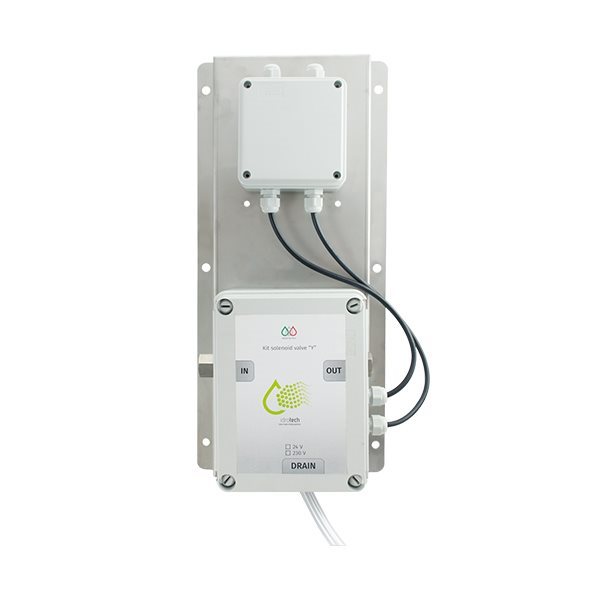

"Y" solenoid valve kit fitting 24V, for fog lines up to 15l/min inlet G3/8" F outlet G3/8" F
ELE0021
ELE.0021
Electrical panel for independent management of 2 Fog lines
ELE0022
ELE.0022
Electrical panel for independent management of 3 Fog lines
ELE0041
ELE.0041
Electrical panel for independent management of 4 Fog lines
preview_accessori_idrotech_ZX0105P
ZX.0105-P
Remote control humidistat with humidity probe
ZX1235
ZX.1235
Water supply Kit, comprising 3m Rilsan d.10 hose with quick male-female connector 3/4" F automatic coupling, piper outer ø19mm
ZX0573-60-R
ZX.0573-60-R
Water inlet kit 5" complete with pressure stabiliser, G1/2" M-M, complete with: string-wound filter cartridge of 5mcr, tightening spanner and fixing bracket
ZX1683(0)
ZX.1683
Confezione 15 pezzi cartucce di ricambio: 5" - 5 mcr
