New solutions / ADI
.png)
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
How the system works

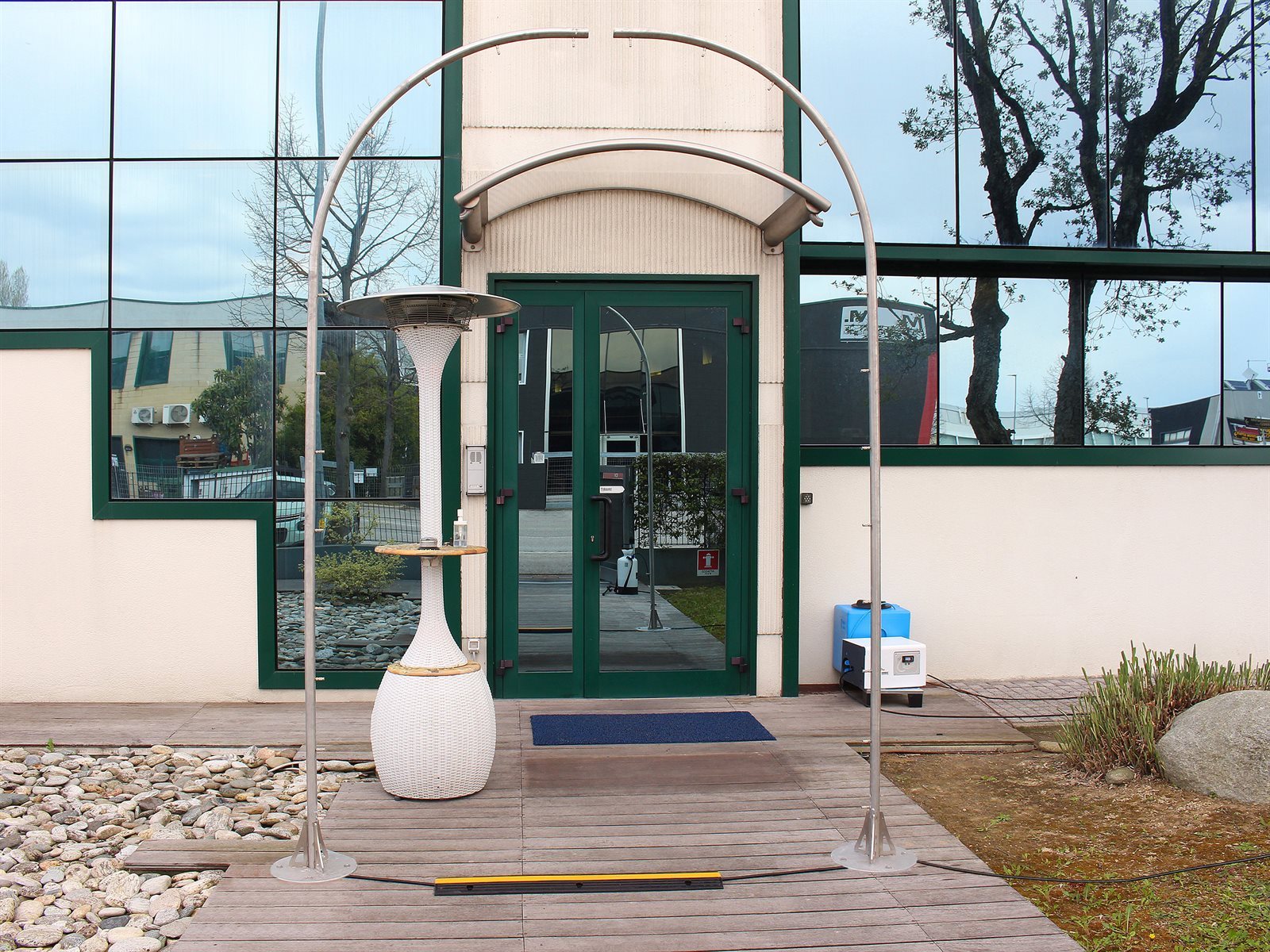

When the person passes, the system starts automatically. The whole person who passes between the two semi-arches is involved in the nebulization, from feet to head, without being wet.
The micro drops, 10 micron, penetrate inside the pores of the person’s clothes during the passage, promoting the killing of any pathogen present.
When the person passes, the system starts automatically. The whole person who passes between the two semi-arches is involved in the nebulization, from feet to head, without being wet.
The micro drops, 10 micron, penetrate inside the pores of the person’s clothes during the passage, promoting the killing of any pathogen present.
highlights
.jpg)
.jpg)
.jpg)
.jpg)
Technical data
| CODE | Model | N° of nozzles | Pressure | Flow rate | Drop size | Drives with 50L tank | Power | Arch dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|
| ZX.2198 | ADI | 16 | 60bar | 0,7l/min | 10mcr | ~450 | 200W (230V-50Hz) | 2000x450x(H)2350 | 40kg |
WARNING
- All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.
- For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.
- The use of the Adi with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.
Technical data
- 16 nozzles
- 450 drives with 50L tank
- Pressure 60bar
- 450 drives with 50L tank
- Pressure 60bar
Standard equipment
The kit includes:
- n°2 semi-arches in AISI304 (code 6002) with 16 nozzles with diameter ø10mm (no. 8 nozzles for each semi arch)
- pump unit, mono-phase electro pump, 60 bar, 2 plungers, 0,7l/min
- electric control system with operating time programmer
- suction kit: liquid suction kit from the tank, with float valve for the automatic stop
- 50 liter tank for product to be nebulized ready for use
- pipe kit: polyamide pipe kit, ø9,6mm, rolls of 100, black

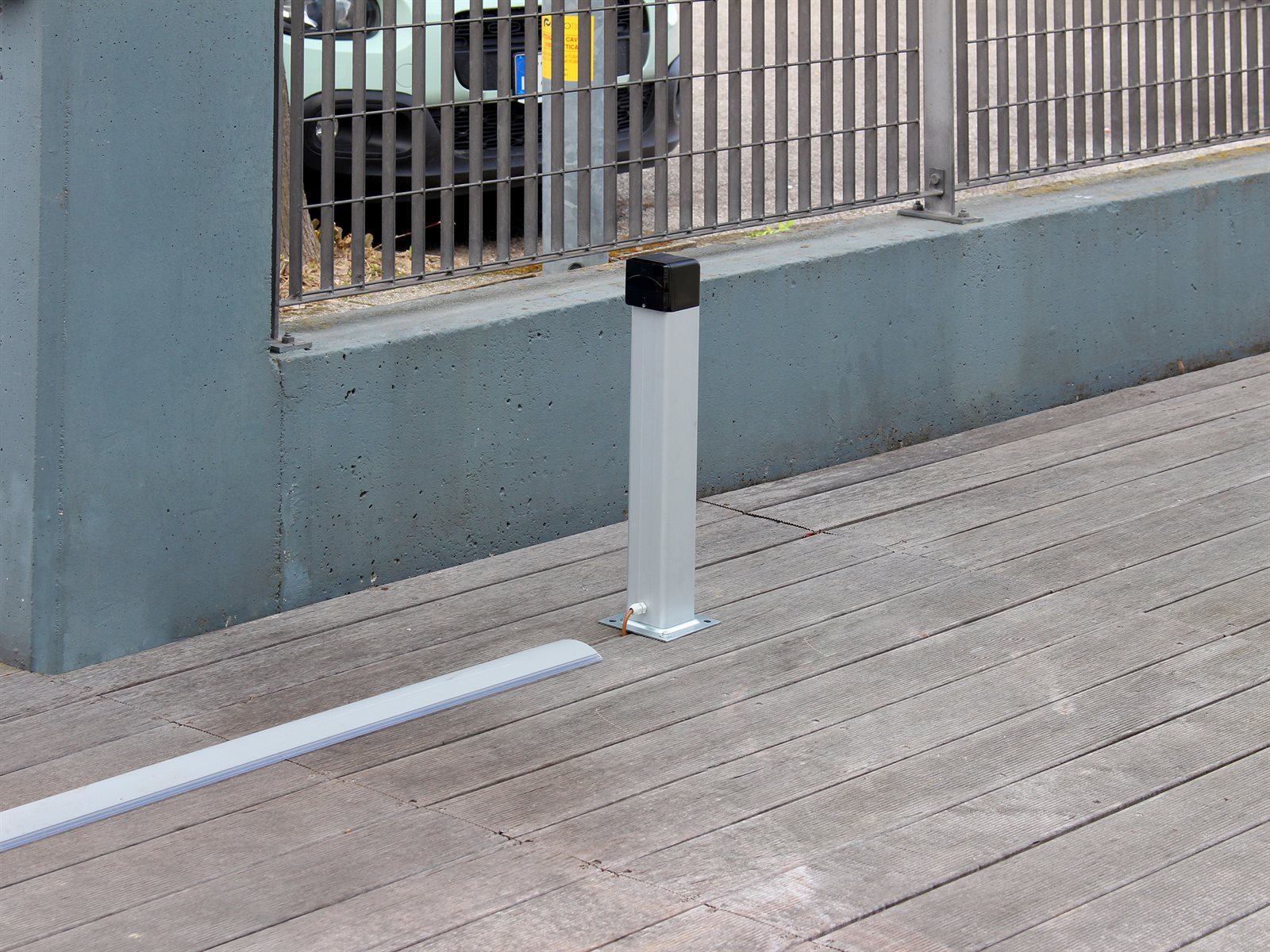

- n°2 photocell with pedestal for the activation of the system

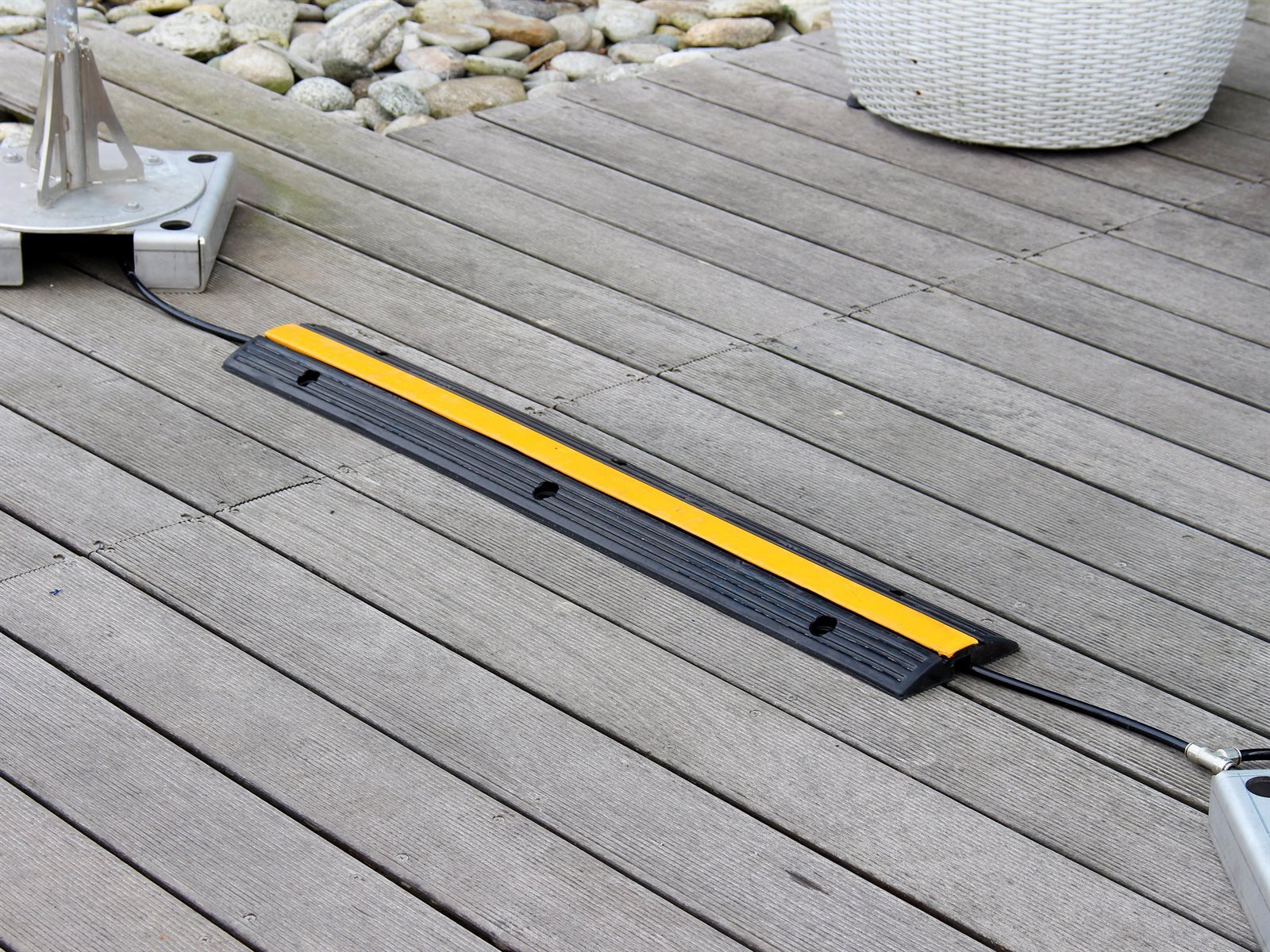

- plastic platform for the connection on the ground of the 2 semi arches.
- n°2 semi-arches in AISI304 (code 6002) with 16 nozzles with diameter ø10mm (no. 8 nozzles for each semi arch)
- pump unit, mono-phase electro pump, 60 bar, 2 plungers, 0,7l/min
- electric control system with operating time programmer
- suction kit: liquid suction kit from the tank, with float valve for the automatic stop
- 50 liter tank for product to be nebulized ready for use
- pipe kit: polyamide pipe kit, ø9,6mm, rolls of 100, black
- n°2 photocell with pedestal for the activation of the system
- plastic platform for the connection on the ground of the 2 semi arches.
optionals / ZX.2198
CDR.2023-25
Idro Safe - 25L. Disinfectant and antibacterial product of medical surgical device grade
ZX.2350-10
BKD®-Purple 10L. Sanitizer concentrate
