New solutions / Roccia 2.0 500bar
LOGO Roccia 2.0

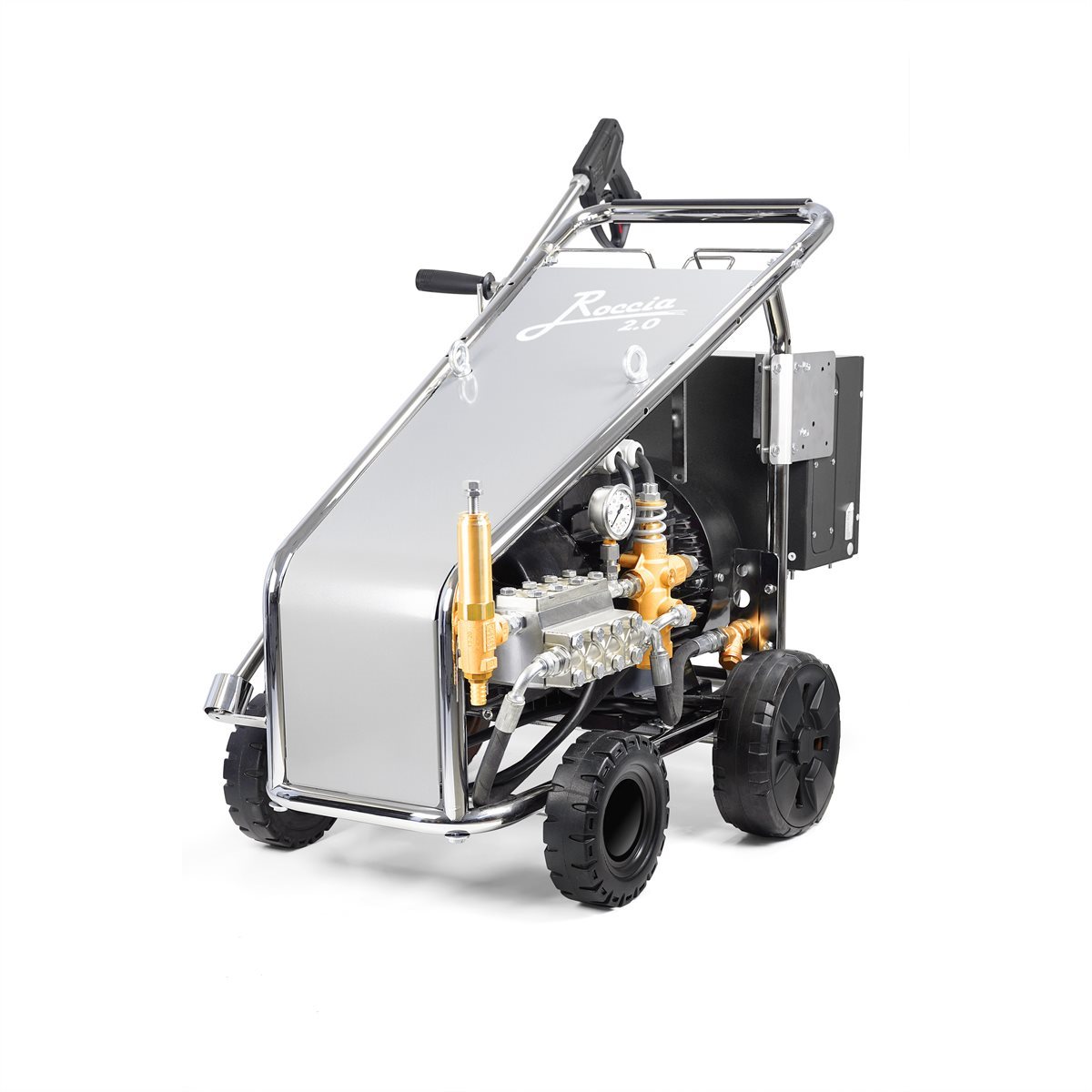

Roccia 2.0 - dx

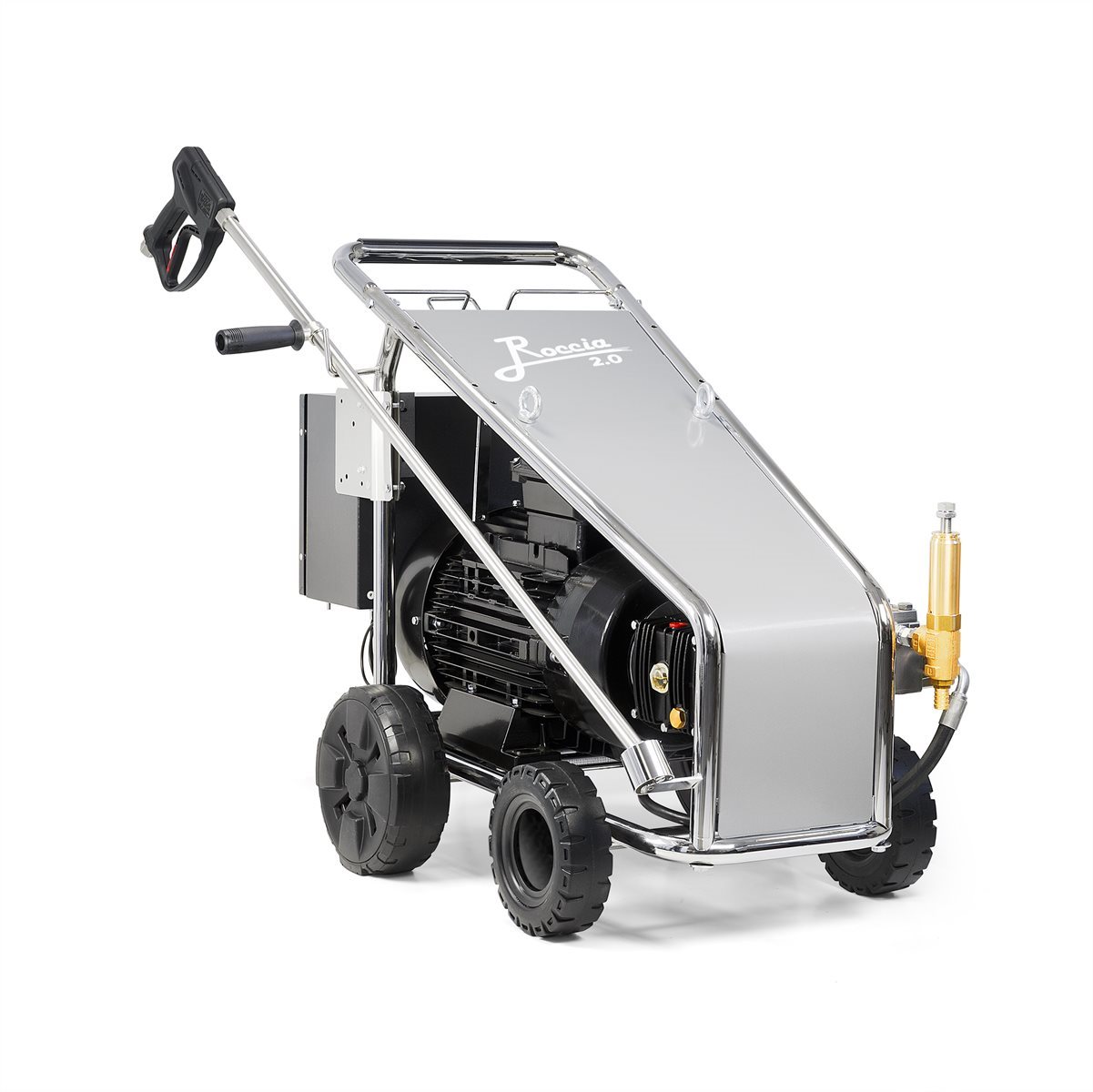

Roccia 2.0 - sx

Roccia 2.0 500bar

H.p. washer for worksite. Ideal for shipyards, road yard, mining industries.

H.p. washer for worksite. Roccia 2.0 is the answer for companies that need to perform tough, heavy-duty jobs and thus require: power for cleaning, scrubbing or sandblasting; reliability for short and long periods; safety for the operators and the machine; economy of time and money. Roccia 2.0 is the ideal solution for shipyards, road yard, mining industries, etc.

highlights
TUBULAR FRAME SET
TUBULAR FRAME SET
Sturdy and durable in chromed steel

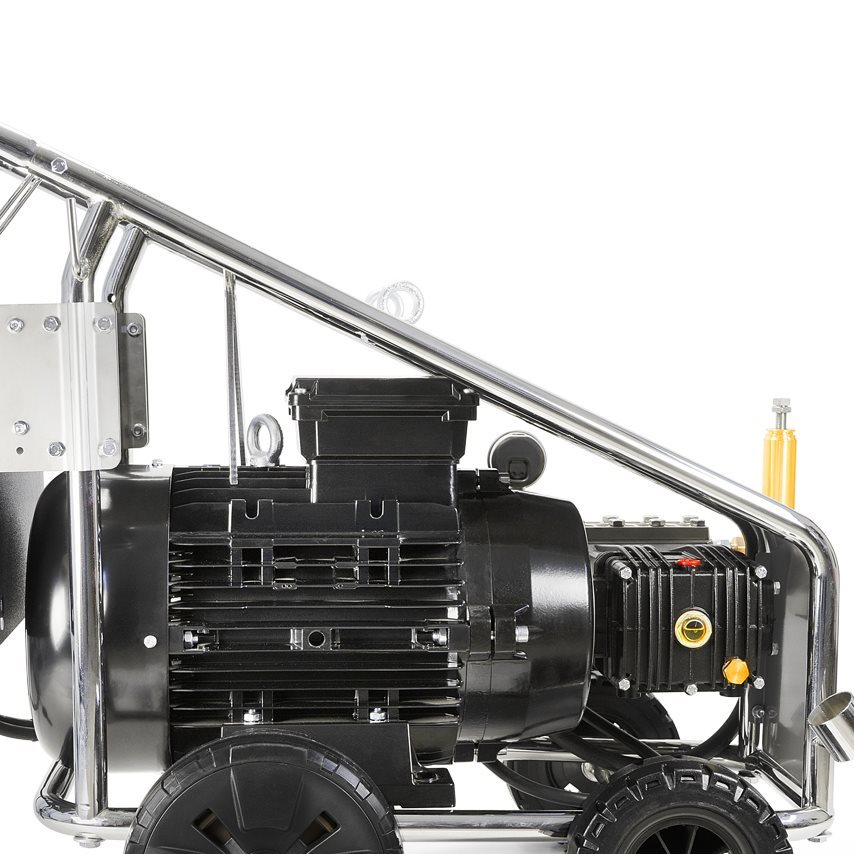

MOTOR-PUMP DRIVE
MOTOR-PUMP DRIVE
With flexible coupling with dual flange = less mechanical shock, longer pump life
CONTROL PANEL
CONTROL PANEL
Star-delta starting device; master ON/OFF switch; emergency stop button; Auxiliary circuit 24V
Roccia 2.0
INDUSTRIAL ACCESSORIES
Compensated gun with AISI 304 stainless steel lance = long-lasting
Technical data
CODE Model Version Pressure Flow rate g/min Power Weight
ZX.2372 500/16 By-pass 500bar 16l/min 1450 20hp (3x400V-50Hz) 200kg
Technical data

Tubular frame set made of chromed steel
Industrial pump 1450rpm, with crankshaft, bronze connecting rods, stainless steel head, 3 ceramic plungers, stainless steel valves, "U" section water seals with anti-extrusion ring. Complete with safety valve
Electric motor 1450Rpm 50Hz complete with electric box IP55
Control panel with star-delta starting device, complete with master ON/OFF switch, emergency stop button and 5m electric cable
Motor-pump drive via flexible coupling housed in motor flange
Water inlet filter with AISI 316 stainless steel 7" cartridge
Dimensions WxLxH: 1120 x 650 x 850mm

Standard equipment
H.p. hose 10m
Industrial compensating spray gun 500bar, 80l/min
Professional lance 1250mm stainless steel
H.p. nozzle 25° high resolution
optionals / ZX.2372
CDR.0311
CDR.0311
RL84 spray gun, inlet G1/2" F, outlet G1/2" F, 500bar, 80l/min, 100°C
optional idrobase
CDR.0402
Shoulder rest, 300mm, connection M18x1,5 M, for spray gun CDR.0311
optional idrobase
CDR.0392
Stainless steel lance, 800mm, 500bar, G1/2" M-1/4" NPT-F
optional idrobase
CDR.0393
Stainless steel lance, 1250mm, 500bar, G1/2" M-1/4" NPT-F
optional idrobase
ZX.1247
Super professional rotating nozzle 030, 500bar, 90°C, G1/4" M
optional idrobase
ZX.0756-030
Sandblasting head G1/4" M

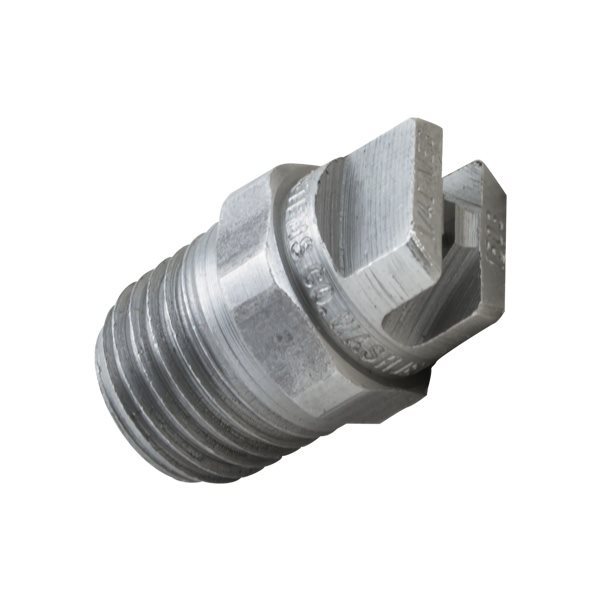

CDR500-1503
CDR.500-1503
H.p. nozzle, 500bar, 25° angle, flow rate 030, 1/4" NPT-M

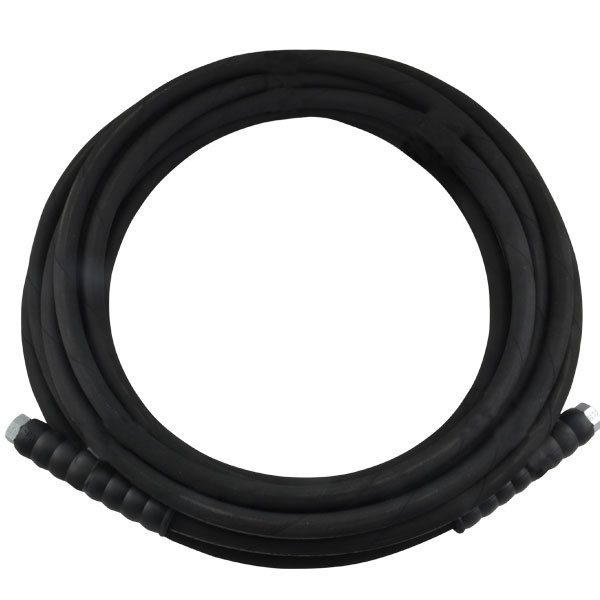

ZNUB100X1111
ZN.UB100X1111

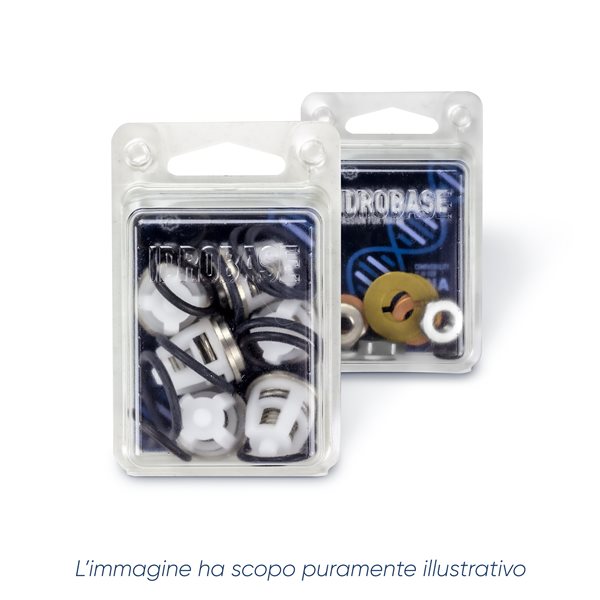

ESE con avvertenzaITA_Cover riparazioni(3)
ZX.75UD01
H.p. industrial pumps preventive maintenance at 750hrs
ESE con avvertenzaITA_Cover riparazioni(7)
ZX.15OUD01
H.p. industrial pumps preventive maintenance at 1500hrs
