New solutions / Scarabeo 2.0

Scarabeo 2.0

Motor-pump unit

See catalogue

Professional crankshaft pump
brass head, 3 ceramic-coated steel pistons, complete with unloader bolt valve with water inlet filter and pressure gauge. 

Motor available in two versions:
- Electric motor 1450Rpm 50Hz (ZX.2342-SC, ZX.2343-SC e ZX.2344-SC)

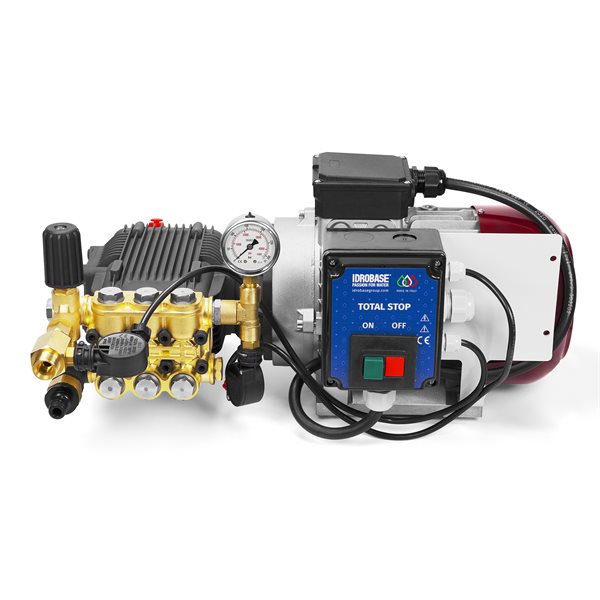

- Electric motor 1450Rpm complete with IP55 electric box with ON/OFF circuit breaker switch ( ZX.2342-BP, ZX.2343-BP, ZX.2344-BP, ZX.2342-TS, ZX.2343-TS e ZX.2344-TS)

Technical data

CODE	Model	IP55 electric box with ON/OFF circuit breaker switch	Version	Pressure	Flow rate	Rpm	Power	Outlet

ZX.2342-BP	1450 100/11 BP	✔	By-pass	100bar	11l/min	1450	3,0hp/2,2kW (1x230V-50Hz)	M22x1,5 M

ZX.2342-SC	1450 100/11 SC	/	By-pass	100bar	11l/min	1450	3,0hp/2,2kW (1x230V-50Hz)	M22x1,5 M

ZX.2342-TS	1450 100/11 TS	✔	Total Stop	100bar	11l/min	1450	3,0hp/2,2kW (1x230V-50Hz)	M22x1,5 M

ZX.2343-BP	1450 150/15 BP	✔	By-pass	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	M22x1,5 M

ZX.2343-SC	1450 150/15 SC	/	By-pass	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	M22x1,5 M

ZX.2343-TS	1450 150/15 TS	✔	Total Stop	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	M22x1,5 M

ZX.2344-BP	1450 200/15 BP	✔	By-pass	200bar	15l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	M22x1,5 M

ZX.2344-SC	1450 200/15 SC	/	By-pass	200bar	15l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	M22x1,5 M

ZX.2344-TS	1450 200/15 TS	✔	Total Stop	200bar	15l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	M22x1,5 M

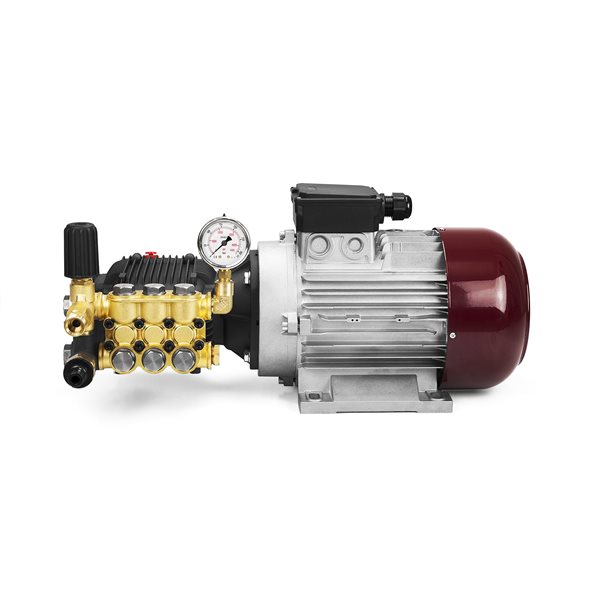

optionals / ZX.2342-SC

ZX.50D01

H.p. professional pumps preventive maintenance set at 500hrs

ESE con avvertenzaITA_Cover riparazioni(1)

ZX.100D01

H.p. professional pumps preventive maintenance set at 1000hrs

ZC.XBCC1

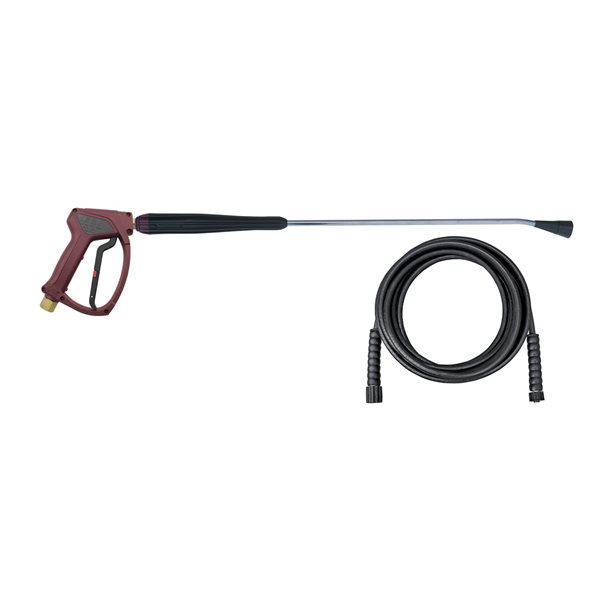

H.p. hose 5/16“, 315bar, 8m with M22x1.5 M screw quick couplings, professional gun, 900mm lance and high resolution 25° h.p. nozzle
