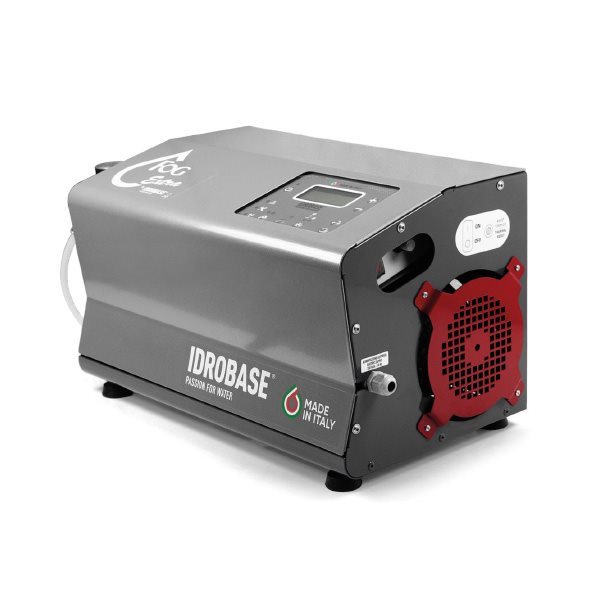

FOG EXTRA

Fog module 70bar industrial from 13 to 560 nozzles 3x400V-50Hz

• Highly compact
• Possibility of installing accessories directly on the module
• Electronic control panel with built-in thermostat and humidstat
• Pre-setting for humidity and temperature probes connection

highlights

Axial pump with three piston with brass head and ceramic steel pistons
(for 2, 4 and 6l/min
flow rate versions)

Electrical connections
for humidity ZX.SU20 and temperature ZX.ST20 probes

Axial pump with two ceramic pistons
(for 2, 4 and 6l/min flow rate versions)

Technical data

CODE	Model	*No. of nozzles	Pressure	Flow rate	Power	Weight	Axial pump	Preventive maintenance 500 hrs (standard)	Preventive maintenance 1500 hrs (optional)

ZX.FL-05	FOG EXTRA-05	10	60 bar	0,5l/min	1250W (1x230V-50Hz)	15kg	with 2 pistons	ZX.50IBG19	ZX.100IBG19

ZX.FL-1	FOG EXTRA-1	20	60 bar	1l/min	200W (1x230V-50Hz)	15kg	with 2 pistons	ZX.50IBG19	ZX.150IBG19

ZX.FL-2	FOG EXTRA-2	40	60 bar	2l/min	720W (1x230V-50Hz)	30kg	a tre pistoni	ZX.50IBG20	ZX.150IBG20

ZX.FL-4	FOG EXTRA-4	85	60 bar	4 l/min	950W (230V-50Hz)	30kg	a tre pistoni	ZX.50IBG20	ZX.100IBG20

ZX.FL-6	FOG EXTRA-6	128	60 bar	6 l/min	1180W (1x230V-50Hz)	30kg	with 3 pistons	ZX.50IBG20	ZX.100IBG20

Technical data

Frame made of painted steel
Professional pump, crankshaft, with brass head with 3 ceramic plungers
Electric motor 1450g/min, 3x400V-50Hz, S1
Unloader valve, in brass
Pressure gauge with glycerine in AISI 304 stainless steel
Solenoid valve l.p. water inlet 230V-50Hz
H.p. solenoid valve 230V-50Hz to discharge line pressure
H.p. switch for no water supply and pipe breaks
Thermostat and humidistat as standard supplies
General thermal switch
3/4” M inlet
Outlet, 1/2” M
Control panel with: cyclical ON/OFF timer supplied as standard, weekly programmer with standard time slots, hour counter
and maintenance schedule. Pre-setting for connection of
230V ventilation systems. Possibility of remote management
Dimensions WxLxH: 780 x 450 x 500mm
