RED 40 spray gun, outlet female swivel ball type KW

products

ZX.1837

Service kit for RED 40 spray gun

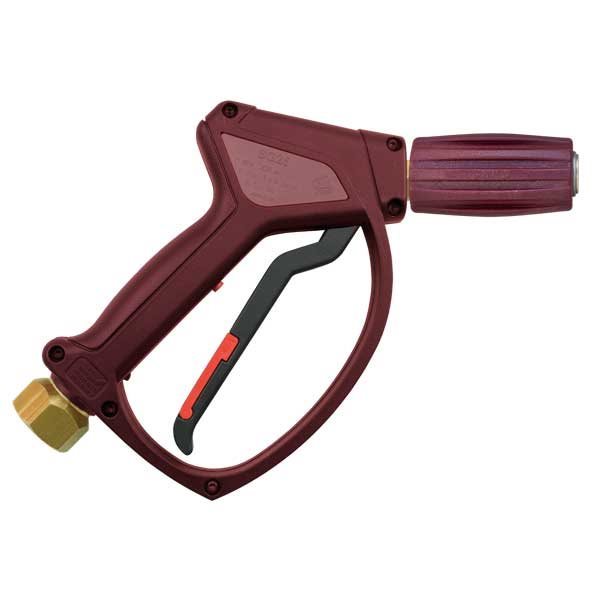

ZX.1840

RED 40 spray gun, outlet female swivel ball type KW.
Features suitable for continuous use: 190bar, 18l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 30l/min
Max pressure: 220bar
Outlet : F ball KW type
Inlet : G3/8" F

ZX.1841

RED 40 spray gun, outlet female swivel ball type KW.
Features suitable for continuous use: 190bar, 18l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 30l/min
Max pressure: 220bar
Outlet: F ball KW type
Inlet: G3/8" F swivel

ZX.1842

RED 40 spray gun, outlet female swivel ball type KW.
Features suitable for continuous use: 190bar, 18l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 30l/min
Max pressure: 220bar
Outlet: F ball KW type
Inlet: G3/8" M

ZX.1843

RED 40 spray gun, outlet female swivel ball type KW.
Features suitable for continuous use: 190bar, 18l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 30l/min
Max pressure: 220bar
Outlet: F ball KW type
Inlet: M22x1,5 M

The winning solution to manufacture and repair all kinds of pressure washers
