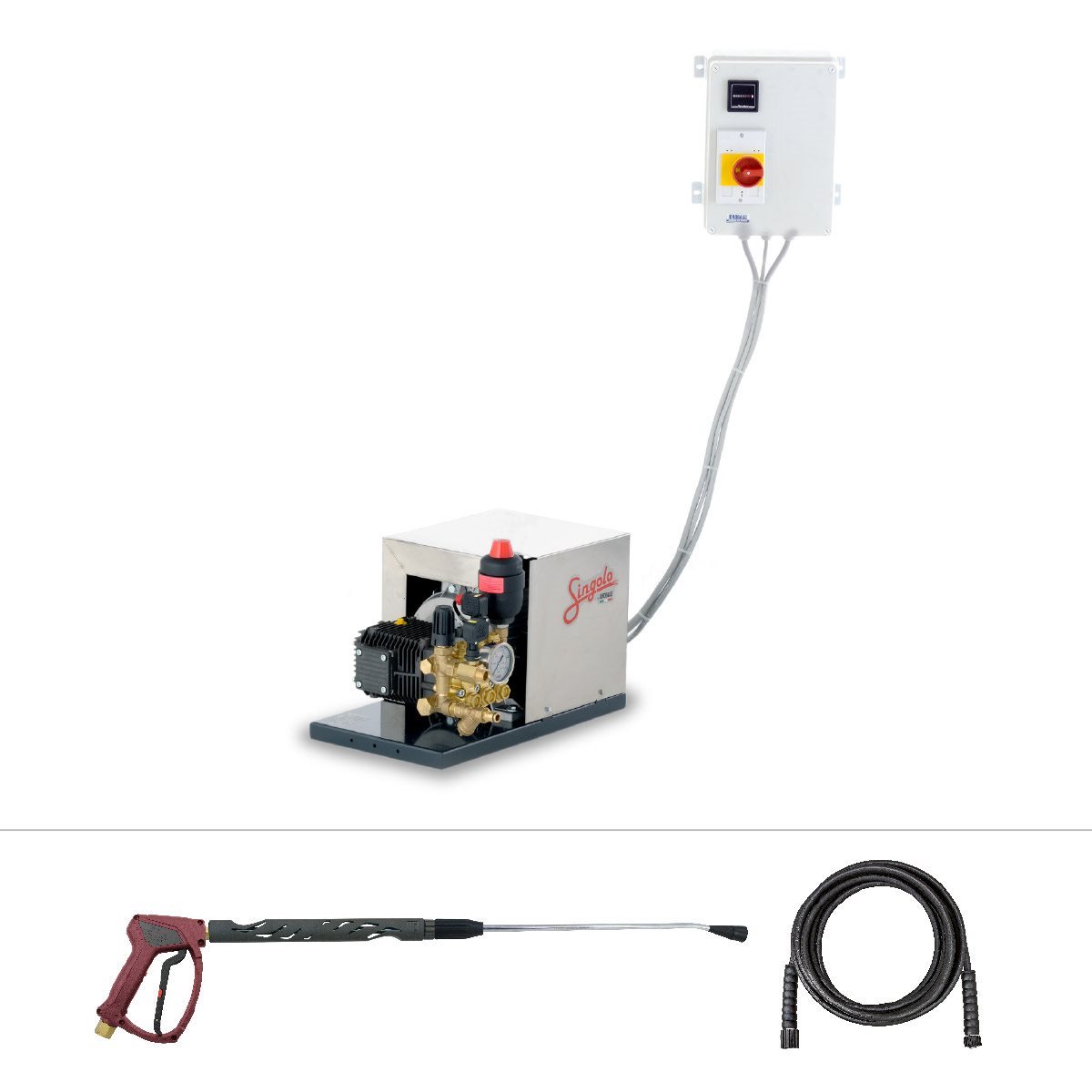

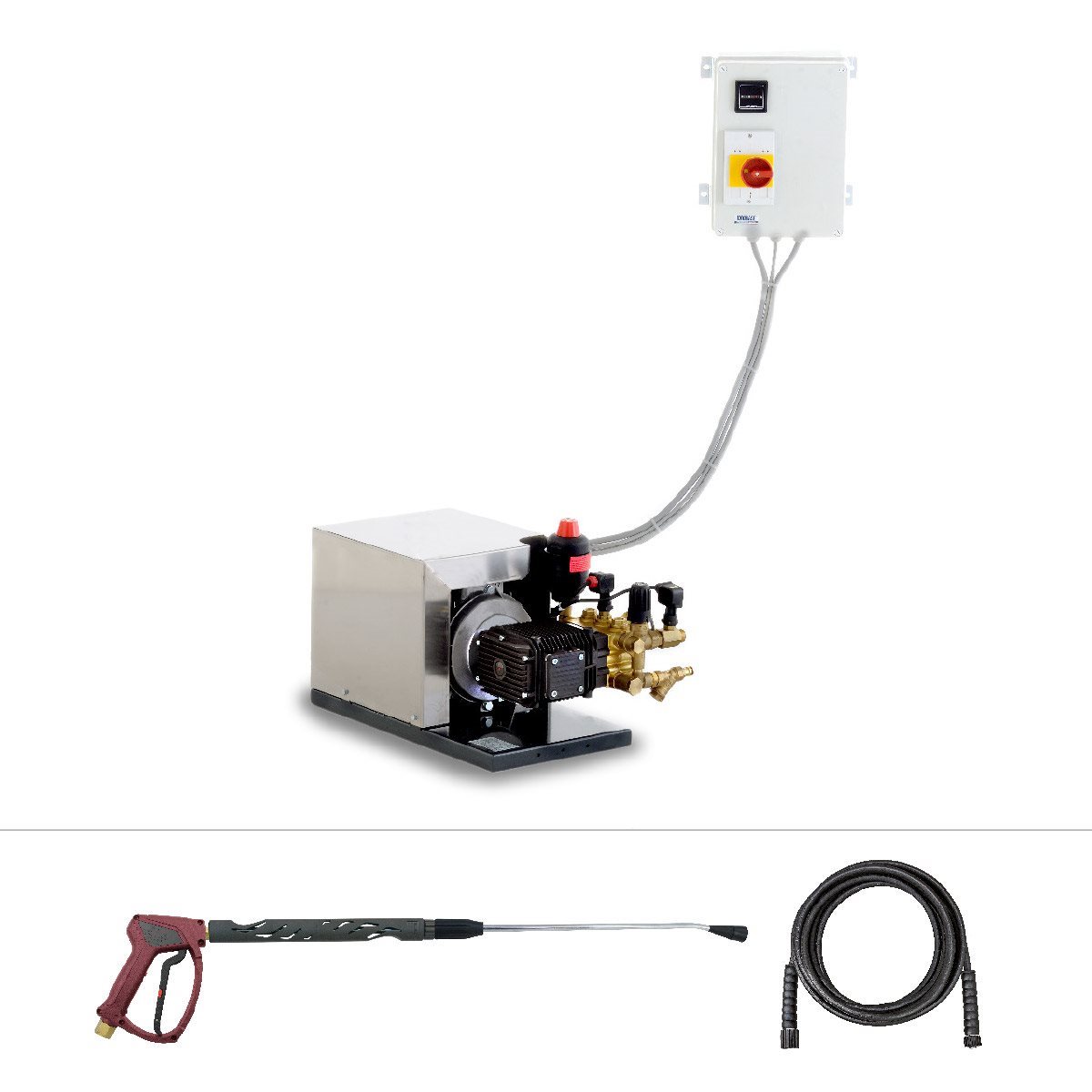

Singolo

The perfect solution for car washes. Singolo enables you to optimise the washing system. It offers the possibility to have a perfect wash, simply, quickly and economically. Singolo is the answer for companies who want higher quality in the pressure washing process, with reduced costs and time taken. It is the ideal solution for the car wash.

Technical data

CODE	Model	Version	Pressure	Flow rate	Rpm	Power	Weight	Maintenance set 500 hrs	Maintenance set 1000 hrs

ZX.2783	1450 150/15	By-pass	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	54kg	ZX.75IBG08	ZX.150IBG08

ZX.2783-TS	1450 150/15 TS	Total Stop	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	56kg	ZX.75IBG08	ZX.150IBG08

ZX.2784	1450 150/21	By-pass	150bar	21l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	67,5kg	ZX.75IBG13	ZX.150IBG13

ZX.2784-TS	1450 150/21 TS	Total Stop	150bar	21l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	70kg	ZX.75IBG13	ZX.150IBG13

Data, tables and pictures are purely indicative. Any changes can be made by the manufacturer without prior notice.

Technical data

Cover AISI 304 stainless steel
Professional pump 1450Rpm, crankshaft, brass head, 3 ceramic plungers
Pressure accumulator to attenuate water hammering
Brass water inlet filter "Y" shaped
Electric motor 1450Rpm/50H
Electric panel, equipped with ON/OFF switch and hour meter. 3m electric cable for connection to the module and 5m for connection to the electric power supply
Dimensions WxLxH: 530 x 450 x 350mm

Standard equipment

H.p. hose 10m with screw quick coupling
Professional spray gun w/extension
Lance extension 580m
H.p. nozzle 25° angle, high resolution

optionals / ZX.2784
